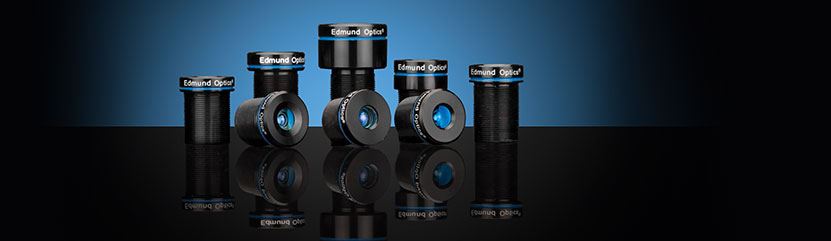

M12 Lenses (S-Mount Lenses)

Custom and
Volume Manufacturing

Learn More

Filter
Liquid Lens M12 Lenses Liquid Lens M12 Lenses
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
New
  • Up to 1/1.8", S-Mount Lens
  • Up to 5 MegaPixels, 2.8µm Pixel Size Sensors
  • Liquid Lens Provides Quick Autofocus
  • 6mm to 16mm Focal Length
Blue Series M12 Lenses Blue Series M12 Lenses
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
  • Up to ½", S-Mount Lens
  • Up to 5 MegaPixels, 1.4µm Pixel Size Sensors
  • High Resolution Board Camera Lens Optimized for Close WD
  • 2mm to 35mm Focal Length
  • Ruggedized Designs Also Available
Rugged Blue Series M12 Lenses Rugged Blue Series M12 Lenses
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
  • Up to ½", S-Mount Lens
  • Up to 5 MegaPixels, 1.4µm Pixel Size Sensors
  • Ruggedized Designs (50g Shock) of our Blue Series Lens with Individual Optics Glued in Place
  • 2mm to 25mm Focal Length
  • Non-Ruggedized Designs Also Available
TECHSPEC® UCi Series Fixed Focal Length Lenses UCi Series Fixed Focal Length Lenses
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
New
  • Up to 1/1.8", C-Mount, S-Mount Lens
  • Up to 12 MegaPixels, 1.85µm Pixel Size Sensors
  • Instrumentation (UCi) versions of our UC Series Lenses with Streamlined Mechanical Designs and Fixed Apertures
  • 4mm to 35mm Focal Length
Red Series M12 Lenses Red Series M12 Lenses
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
  • Up to 1/2", S-Mount Lens
  • Up to 1.3 MegaPixels, 5µm Pixel Size Sensors
  • Board Camera Lens Optimized Long WD and Infinite Conjugate
  • 3.6mm to 8mm Focal Lengths
Green Series M12 Lenses Green Series M12 Lenses
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
  • Up to 1/2", S-Mount Lens
  • Up to 0.4 MegaPixels, 8.3µm Pixel Size Sensors
  • Board Camera Lens Optimized for Close WD and Finite Conjugate
  • 6mm to 25mm Focal Lengths
HEO Series M12 Lenses HEO Series M12 Lenses
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
  • Up to ½", S-Mount Lens
  • Up to 1.2 MegaPixels, 5µm Pixel Size Sensors
  • Meets IEC Ingress Protection Ratings of IPX7 and IPX9K
  • 2.2mm to 8mm Focal Length
Long Working Distance Optimized Imaging Lenses Long Working Distance Optimized Imaging Lenses
  • Up to 2/3", S-Mount Lens
  • Wide Field of View Board Camera Lens
  • 1.68mm to 50mm Focal Length

Machine Vision Lens Selector Tool

FIND THE BEST LENS FOR YOUR APPLICATION
Find your lens

M12 Lenses, also referred to as S-Mount Lenses or Micro-Video Lenses, are board lenses used to focus an image onto a camera sensor. They are used in a variety of applications including automotive, forensics, pharmaceutical, and food inspection. These S-Mount Lenses are compact imaging lenses designed for use with many small format industrial cameras. M12 Lenses are ideal for environments where space is limited or for OEM implementation. M12 Micro-Video Lenses are low cost alternatives to standard-sized imaging lenses.

Edmund Optics offers a wide range of S-Mount Lenses designed for use in the visible to near-infrared spectra or within harsh environments. TECHSPEC M12 Lenses are available to meet a broad range of requirements for your application. M12 Lenses are versatile options that can be implemented or adapted to many imaging applications that utilize standard imaging lenses. A large selection of imaging accessories are also available, such as spacer rings or extension tubes, for additional features or integration options.

FAQ(s)



What are M12 (S-Mount) lenses?

M12 or micro-video imaging lenses are typically board lenses that are small and feature an S-Mount type camera or lens mount. The S-Mount is a standard lens mount used in machine vision and M12 refers to the metric thread type with a nominal diameter of 12mm, a pitch of 0.5mm (M12 x 0.5), and without a standardized flange distance (see The Anatomy of a Lens) as many other mount type have including the C-Mount and TFL-Mount for example. These lenses are often ideal for space- and weight-constrained applications including OEM implementation, CCTV, and other board-level cameras. Additionally, M12 lenses are low cost alternatives to standard-sized fixed focal length lenses. For more information on imaging lenses and their differences, read Types of Machine Vision Lenses.
×
