Cameras

Cameras are used to capture image data from an examined object or location for a number of imaging applications such as machine vision or factory automation. Cameras are imaging components that interface with imaging lenses. Cameras feature sensors designed to image focused light. Cameras are offered in many different sensor formats, as well as CCD or CMOS sensor types suitable for nearly any camera imaging application.

Edmund Optics offers a wide range of analog or digital Cameras designed for a variety of imaging applications, including video microscopy or industrial use. Cameras use a wide range of video outputs to display an image on a monitor. Digital Cameras are available with a variety of digital interfaces, such as USB 2.0, USB 3.0, FireWire.a, FireWire.b, Gigabit Ethernet, or Camera Link® to ensure maximum compatibility with any number of applications’ needs. A selection of camera accessories is also available including mounting adapters, capture cards, or cables.

New
FLIR Blackfly® S Polarization Cameras

Feature Sony’s Polarization Image Sensor
Four-Directional Polarizers Formed on Chip
PoE GigE and USB 3 Versions Available

New
Allied Vision Alvium USB 3.1 Cameras

Compact, Low Cost, High Performance Design for Machine Vision and Embedded Applications
ALVIUM® System on Chip (SoC) Technology with Onboard Imaging Preprocessing
C-Mount, CS-Mount, or S-Mount

Allied Vision Mako USB 3.0 Cameras

Compact Housing with Form Factor of 49.5 x 29 x 29mm
Powered Over USB 3.0 Interface
High Frame Rates
Screw Locks Ensure Safe Electrical Connections

New
IDS uEye LE USB 3.1 AF Autofocus Liquid Lens Board Level Cameras

Compact M12 S-Mount Board Level Cameras
Integrated Liquid Lens Control
Software Based Autofocus Functionality

New
EO Autofocusing USB 2.0 Compact Camera System

Integrated Autofocus Lens Focuses from 100mm to Infinity
Lightweight, Ultra Compact Design
Greater than HD Resolution

New
Pixelink® USB 3.0 Autofocus Liquid Lens Board Level Cameras

M12 S-Mount Board Level Cameras
Seamless Integration of Liquid Lenses
One-Push Autofocus, High Speed Focus Movement

Basler ace USB 3.0 Cameras

High Speed USB 3.0 Interface
Ultra-Small Form Factor
Fully USB3 Vision Compliant

Basler PowerPack Microscopy Cameras

High Performance Cameras Featuring State-of-the-Art CMOS Sensors
Professional Software for Image Acquisition and Analysis Included
Unique Advanced Image Enhancement and Color Adjustment Technology
Various Plug-and-Play Microscopy Packages Available

EO Auto-Focus µ-Video™ Lens Cameras

Accept Most Standard M12 μ-Video™ Imaging Lenses
0.4 and 5.0 MegaPixel Options Available
Focus and Auto-Focus Available Through Included Software

EO USB 2.0 Board Level Cameras

High Resolution
Standard M12 x 0.5 Lens Mount
Software SDK Included
Adjustable Frame Rate via Binning, Sub-sampling or AOI

EO USB 2.0 CCD Machine Vision Cameras

Offers Increased Uniformity
Compatible with EO USB Camera Accessories
Housing Dimensions of 34 x 32 x 34.4mm
EO USB 2.0 CMOS Cameras Also Available

EO USB 2.0 CMOS Machine Vision Cameras

Ultra-Compact Housing
Progressive Scan
Adjustable Frame Rate via Binning, Sub-sampling or AOI
Powerful Easy to Use Software Interface

EO USB 3.0 CMOS Machine Vision Cameras

Compact 29 x 29 x 29mm Design
USB 3.0 Interface for Maximum Data Transfer Speed
Lightweight Magnesium Housing
PoE Models Also Available

New
EO USB 3.1 CMOS Machine Vision Cameras

USB 3.1 = Higher Transfer Rates up to 5 Gbps
Features a Reversible USB Type-C Connector
Compact Housing: 47 x 46 x 26.3mm

New
FLIR Blackfly® S USB 3.1 Cameras

Ultra-Compact Design
USB3 Vision and GenICam Compliant
Includes Image Capture Software and Spinnaker SDK

FLIR Blackfly® USB 3.0 Cameras

Ultra-Compact Design
USB 3.0 Connectivity for Increased Image Transfer Rate
Includes Image Capture Software and FlyCapture2 SDK

FLIR Chameleon® USB 2.0 Camera

High Quality 1.3 MP Sony® EXview HAD CCD®
Ultra-Compact and Lightweight
General Purpose I/O for Trigger and Strobe

FLIR Chameleon®3 USB 3.0 Cameras

USB 3.0 Connectivity
Lightweight Construction
Compact Design

FLIR Flea®3 USB 3.0 Cameras

Compact 29 x 29 x 30mm Design
Captures Images at up to 150fps
Image Capture Software and ¼-20 Tripod Adapter are Included
GigE Models Also Available

FLIR Grasshopper®3 High Performance USB 3.0 Cameras

Feature High Resolution, High Sensitivity Sensors
High Frame Rates Driven by USB 3.0 Interface
Includes Image Capture Software and SDK

1500 - 1600nm NIR CCD USB 2.0 Camera

Phosphor Coated CCD Array
Spectral Peaks at 1512nm and 1540nm
Includes Camera, Cable, and Easy-to-Use Software

Lumenera INFINITY Microscopy Cameras

Ideal for Life Sciences, Clinical, and Industrial Applications
USB Plug & Play
Powerful Capture and Analysis Software Included
PC & Mac Compatibility

PixeLINK® USB 2.0 Microscopy Cameras

Perfect for Microscopy Applications
Features Include Live Measurement and Overlay Ability
Up to 6.6 MegaPixel Resolution

PixeLINK® USB 3.0 Autofocus Liquid Lens Cameras

Seamless Integration of Liquid Lenses
One-Push Autofocus, High Speed Focus Movement
Easy to Use USB 3.0 Interface

PixeLINK® USB 3.0 Cameras

Resolutions Up to 14MP
Sensor Sizes from ½" to 1.1"
Right Angle Housing and Board Level Configurations Available

PixeLINK® USB 3.0 Microscopy Cameras

Easy-to-Setup USB 3.0 Technology (Cable Included)
Up to 15 MegaPixel Resolution
Include Extensive μScope Standard Microscopy Software

PixeLINK® USB 2.0 CMOS Cameras

0.3 to 6.6 MegaPixel Color/Monochrome CMOS Arrays
External Trigger and General-Purpose Output Controls
Out of the Box Functionality
FireWire.a and GigE Versions Also Available

USB Digital Microscopes

10 – 200X and 500X Magnifications Available
Polarizer, UV, VIS, and IR Models
Measurement and Comparison Software Included

New

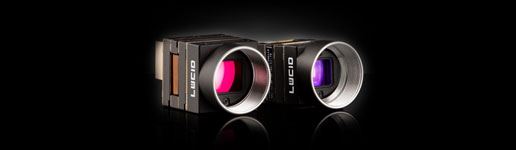

Lucid Vision Labs Atlas™ Power over Ethernet (PoE) 5GBASE-T (5GigE) Cameras

5GBASE-T (5GigE) Ethernet Interface
5.0 to 31.4 Megapixel Sensors
Compact 55 x 55 x 70mm Design
TFL-Mount Compatible with TECHSPEC® CA Series FFL Lenses

New
Lucid Vision Labs Triton™ Power over Ethernet (PoE) Cameras

Compact 29 x 29 x 45mm Form Factor
Global, Rolling, or Polarized CMOS Sensors
IP67 Protection with Optional Lens Tubes

New
Lucid Vision Labs Phoenix™ Power over Ethernet (PoE) Cameras

Unfolding Board Stacks for Customization
Power Over Ethernet (PoE) for Easy Integration
Compact Size Starting at 24 x 24mm

Allied Vision Mako Power over Ethernet (PoE) Cameras

Compact, Robust Metal Housing
One Optocoupled Input, Three Outputs
Power over Ethernet for Increased Flexibility

New
FLIR Blackfly® S Polarization Cameras

Feature Sony’s Polarization Image Sensor
Four-Directional Polarizers Formed on Chip
PoE GigE and USB 3 Versions Available

New
FLIR Blackfly® S PoE GigE Cameras

PoE (Power over Ethernet)
GigE Vision and GenICam Compliant
Compact 29 x 29 x 30mm Size
Extensive API Library and Included Spinnaker SDK

New
Allied Vision Manta PoE Cameras

Up to 1.1” Maximum Sensors
Up to 128MB of Onboard Memory
Power over Ethernet for Increased Flexibility

Allied Vision Manta GigE Cameras

Ideal Analog Replacement
Up to 1" Maximum Sensors
Up to 125 fps
32MB of Onboard Memory

Allied Vision Prosilica GC Series GigE Cameras

Compact Size
High Frame Rates
Region of Interest Readout (AOI Partial Scan)
Windows SDK and Linux SDK Included

Allied Vision Prosilica GT Series GigE Cameras

Rugged PoE Camera for Extreme Environments
Precise (P-Iris) and DC Auto Iris Control
Up to 29 MegaPixel Resolution

Allied Vision Prosilica GX Series GigE Cameras

Fastest GigE Cameras Available: 240 MB/s
Up to 17fps at 8 MegaPixel Resolution
Robust Software Package
3-Axis Motorized Lens and Video Auto-Iris Control

Basler ace GigE Cameras

Perfect Analog Replacement
Ultra-Small Form Factor
Power Over Ethernet (PoE)
Includes Basler Pylon Driver

Basler Scout Cameras

Available in FireWire.b and Gigabit Ethernet Connections
Small Rugged Housing for Easy Integration
Compatible with GenICam, GigE Vision and EMVA 1288

New
Teledyne Dalsa Genie™ Nano GigE Power over Ethernet (PoE) Cameras

Fast Frame Rates up to 862 fps
Compact, Robust All Metal Body
Global Electronic Shutter with Exposure Control

EO GigE Machine Vision Cameras

Ultra-Compact Housing
Progressive Scan
Adjustable Frame Rate via Binning, Sub-sampling or AOI
Powerful Easy to Use Software Interface

EO Power over Ethernet (PoE) Cameras

Ultra-Compact Housing Design
Powered by PoE Injector or PoE Computer Card
Powerful, Easy-to-Use Software Interface

FLIR Blackfly® PoE GigE Cameras

Ultra-Compact Design
Power over Ethernet (PoE) for Maximum Flexibility
Includes Image Capture Software and FlyCapture2 SDK

FLIR Flea®3 GigE Cameras

Compact 29 x 29 x 30mm Design
Compatible from 0.3 – 5.0 MP CCD Sensors
Image Capture Software and ¼-20 Tripod Adapter are Included
USB 3.0 Models Also Available

JAI GigE Cameras

Gigabit Ethernet Output
Up to 16 MegaPixel Resolution Available
Color and Monochrome Options
Up to 12 Bit Output

PixeLINK® GigE Cameras

0.3 to 6.6 MegaPixel Color/Monochrome CMOS Arrays
External Trigger and General-Purpose Output Controls
GigE Interface, GenICam Compliant
FireWire.a and USB2.0 Versions Also Available

Allied Vision Guppy FireWire.a Cameras

Ultra Compact
Low Cost
Color or Monochrome

Allied Vision Guppy Pro FireWire.b Cameras

Small Form Factor
FireWire.b Interface
Low Cost
Up to 120fps

Allied Vision Pike FireWire.b Cameras

Designed for High Speed Applications
HD and VGA to 5MP Options Available
16 Bit High SNR Mode

Allied Vision Stingray FireWire.b Cameras

Excellent Price/Performance Ratio
High bit-depth (14-bit or 8-bit output, user-selectable)
VGA(640 x 480) – 5MP Resolutions Available

Basler Scout Cameras

Available in FireWire.b and Gigabit Ethernet Connections
Small Rugged Housing for Easy Integration
Compatible with GenICam, GigE Vision and EMVA 1288

FireWire.a VGA Board Level Cameras

Full Frame Electronic Shutter
Standard M12 x 0.5 Lens Mount
Uncompressed VGA Picture Up to 30fps
DCAM Compliant

PixeLINK® FireWire.a CCD Cameras

0.8, 1.4, 2.0 MegaPixel CCD
External Trigger and General-Purpose Output Controls
FireWire Interface, DCAM Compliant

PixeLINK® FireWire.a CMOS Cameras

0.3 to 6.6 MegaPixel Color/Monochrome CMOS Arrays
External Trigger and General-Purpose Output Controls
FireWire Interface, DCAM Compliant
USB2.0 and GigE Versions Also Available

New
Basler boost CoaXPress 2.0 Camera Kits

Utilize Full Sensor Potential in Both Resolution and Speed
High Bandwidth CoaXPress 2.0 (CXP-12) Cameras
CXP-12 Interface Card 1C Included with Cameras

JAI Camera Link® Cameras

Camera Link® Output
5 MegaPixel Resolution Available
Color and Monochrome Options
Up To 12 bit output

1460-1600nm Near-Infrared Camera

Low Cost
Compact Size
Standard Analog Video Output
High Speed Electronic Shutter

Watec Color Camera

Multi Function
High Sensitivity
Simultaneous Output of Composite Video and Y/C Signals

Watec Monochrome Cameras

EO USB 2.0 Board Level Cameras

High Resolution
Standard M12 x 0.5 Lens Mount
Software SDK Included
Adjustable Frame Rate via Binning, Sub-sampling or AOI

FireWire.a VGA Board Level Cameras

Full Frame Electronic Shutter
Standard M12 x 0.5 Lens Mount
Uncompressed VGA Picture Up to 30fps
DCAM Compliant

PixeLINK® USB 3.0 Cameras

Resolutions Up to 14MP
Sensor Sizes from ½" to 1.1"
Right Angle Housing and Board Level Configurations Available

PixeLINK® FireWire.a CMOS Cameras

0.3 to 6.6 MegaPixel Color/Monochrome CMOS Arrays
External Trigger and General-Purpose Output Controls
FireWire Interface, DCAM Compliant
USB2.0 and GigE Versions Also Available

PixeLINK® GigE Cameras

0.3 to 6.6 MegaPixel Color/Monochrome CMOS Arrays
External Trigger and General-Purpose Output Controls
GigE Interface, GenICam Compliant
FireWire.a and USB2.0 Versions Also Available

PixeLINK® USB 2.0 CMOS Cameras

0.3 to 6.6 MegaPixel Color/Monochrome CMOS Arrays
External Trigger and General-Purpose Output Controls
Out of the Box Functionality
FireWire.a and GigE Versions Also Available

Advanced Power Supply for Hitachi and Sony Cameras

FireWire Camera Accessories

FireWire.a and FireWire.b Cables
FireWire.a and FireWire.b PCI Cards

Gigabit Ethernet (GigE) Accessories

GigE Cable Lengths up to 20m
Capture Cards Available for PCI and PCI-E

Handheld Crossline Generator

User Adjustable Crosshairs
Supports PAL/NTSC
Black or White Crosshairs
Power Pass Through Design
Low Cost

Imperx Analog Laptop Capture Cards

On-Board Memory for Fast Image Acquisition
2 RCA Jack Inputs
Type II PCMCIA Connection
Intelligent Scatter/Gather DMA
NTSC/PAL/SECAM/RS170 Complaint (Auto NTSC/PAL Format Detection)
Single Frame, Multi-Frame or AVI Output
Drivers for Windows 2000/XP, WDM and LabVIEW
Requires 3.3V DC ±5%; 160 mA Steady (350mA Inrush) and 0.5W Constant Power

Imperx Camera Link® Laptop Capture Cards

ExpressCard(PCI-E) and PCMCIA Version Available
Base Camera Link® Compliant
Intelligent Scatter/Gather DMA
Easy to Use GUI Interface
Single Frame, Multi-Frame or AVI Output

Kopin Ruby SVGA Microdisplay Modules

Fully Integrated Plug-and-Play LCD Display Modules
Color and Monochrome Modules Available
SVGA (800 x 600 Pixels) Resolution

LCD Monitors

Multiple Sizes
Cost Effective
Fast Response Time

Power Supplies and Connection Cables

Interchangeable 4 Blade Kit for US, UK, Euro and Australian Standard Outlets
5, 9, or 12V Power Supply Options
Only 5V and 9V Options Include a 6-Foot Cord

Video Cables

BNC, RCA, or S-Video Options
Multiple Cable Lengths Available

Accessories for Imaging Systems

Swivel Arm for Added Flexibility
90° Angle Mounts Connect Horizontal Arms onto Vertical Posts
Ring Mounts for Increased Versatility
Imaging System Bases, Rack and Pinion Focusing Mounts, and Stainless Steel Posts Also Available
