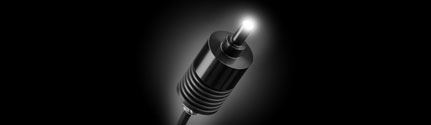

Fiber Coupled LEDs

Fiber Coupled LEDs New

Center Wavelengths from 375 - 1050nm
Integrated Heat Sink for Thermal Management
Continuous, TTL, or Analog Modulation Operation

Fiber Coupled Laser-Driven White Light Source

Fiber Coupled Laser-Driven White Light Source New

Extremely High Luminance with Output Power up to 500mW
Light Coupling with 50µm – 1mm Core Diameter Multimode Fibers
User-Friendly GUI for Remote Control via USB or RS-232
450 – 700nm Wavelength Range

Effilux UV Bar Lights

Effilux UV Bar Lights New

Improved Fluorescence Effect, Contrast and Glare Removal
Built-in Driver with Auto-strobe Feature for Increased Intensity
365nm LED Light for Fluorescence Applications

Effilux Hyperspectral Bar Lights

Effilux Hyperspectral Bar Lights New

Flat Spectrum Between 400nm - 900nm and 400nm - 1000nm
Direct Access to Optics for Quick, Manual Adjustment of Illumination Cone Angles
Included Interchangeable Windows Allows for Easy Adjustment of Light Diffusion

Effilux EFFI-Lase Structured LED Lighting Projector

Effilux EFFI-Lase Structured LED Lighting Projector New

High Accuracy Without Speckle
Wide Range of Standard Masks Available
White, Blue, Red, and IR Colors Available

Effilux Low Profile Segmented Square LED Ring Lights New

Integrated Driver with AutoStrobe Feature
Thin 15mm Profile
Red and White Colors Available

Effilux High Power LED Backlights

Effilux High Power LED Backlights New

>90% Uniformity
Integrated Analog Controller for Precise Intensity and Dimming
Anti-Reflection System to Absorb Stray Light

Effilux Flat Dome Lights

Effilux Flat Dome Lights New

Dome Light Performance in a Flat Housing
Integrated Analog Controller for Precise Intensity and Dimming
Anti-Reflection System to Absorb Stray Light
Continuous or Strobe mode

CCS Infrared (IR) Bar Lights

CCS Infrared (IR) Bar Lights New

850 or 940nm Wavelength Options
Compact Lightweight Housing
Single and 4-Bar Configurations Available

Advanced Illumination Ethernet Controlled High Intensity LED Spot Lights

Advanced Illumination Ethernet Controlled High Intensity LED Spot Lights New

Controllable via Ethernet GUI or Web Browser
Compatible with 8mm or 1/4" (0.312") Fiber Illumination Ports
Efficient Thermal Management for Long LED Life
Compatible with TECHSPEC® Telecentric Backlight Illuminators and Lenses

LED Ring Lights for Telecentric Lenses

LED Ring Lights for Telecentric Lenses New

Designed for use with TECHSPEC® CompactTL™ Telecentric Lenses
Built-in Cooling Fins for Consistent, High Intensity Performance
Includes Easy to Integrate Polarizer and Diffuser

CCS Low-Angle Square LED Illuminators

CCS Low-Angle Square LED Illuminators New

Improved Inspection of Rectangular and Square Objects vs. Ring Lights
Low-Angle Lighting from Four Directions
Ideal for Inspection of Food Packaging and PCB’s

CCS High-Angle LED Ring Lights

CCS High-Angle LED Ring Lights New

High-Angle, Direct Lighting for Uniform Intensity
Designed for Constant Output Power for Prolonged Use
Ideal for Brightfield Illumination

CCS Low-Angle LED Ring Lights

CCS Low-Angle LED Ring Lights New

Low 30° LED Mounting Angle
Designed for Constant Output Power for Prolonged Use
Ideal for Darkfield Illumination

CCS High Intensity Ring Lights

CCS High Intensity Ring Lights New

Uniform High Intensity Diffuse Light Source
Switchable Red, Green, Blue, and White Channel Outputs
Illumination for Text Recognition (OCR) and Color Examination Applications

View all Resources Related to New Illumination
