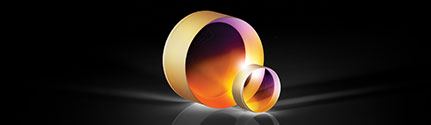

    Achromatic Lenses

    Achromatic Lenses are used to minimize or eliminate chromatic aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Lenses are ideal for a range of applications, including fluorescence microscopy, image relay, inspection, or spectroscopy. An Achromatic Lens, which is often designed by either cementing two elements together or mounting the two elements in a housing, creates smaller spot sizes than comparable singlet lenses.

    Edmund Optics offers a large variety of Achromatic Lenses. Multiple anti-reflection coating options for the Ultraviolet (UV), visible, or Infrared (IR) are available, including UV-VIS, MgF2, VIS 0°, VIS-NIR, NIR II, or SWIR. Additionally, Achromatic Lenses designed specifically for the Ultraviolet (UV) or Infrared (IR) are available, which offer superior performance when compared to a standard Achromatic Lens that has been coated for the same or comparable wavelength range. Aspherized Achromatic Lenses, which combine an Achromatic Lens’ color correction with an Asphere’s superior spherical aberration correction, are also available. Triplet Achromatic Lenses are offered for applications requiring 1:1 conjugate ratios, or high power magnification.

    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    MgF2 Coated Achromatic Lenses
    • Designed for 0° Angle of Incidence
    • Less Than 1.75% Reflectance Per Surface @ 400 - 700nm
    • VIS 0° and VIS-NIR Coated Achromats Also Available
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    VIS 0° Coated Achromatic Lenses
    • Designed for 0° Angle of Incidence
    • Less Than 0.4% Reflectance Per Surface from 425 - 675nm
    • MgF2 and VIS-NIR Coated Achromats Also Available
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    VIS-NIR Coated Achromatic Lenses
    • Designed for 0° Angle of Incidence
    • Less Than 0.25% Reflectance Per Surface @ 880nm
    • MgF2 and VIS 0° Coated Achromats Also Available
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Near-IR (NIR) Achromatic Lenses
    • Designed to Give Increased Resolution and Smaller Spot Sizes for NIR Wavelengths (750-1100nm)
    • Decreased Spherical Aberration for Monochromatic Sources Out to 2μm
    • Broadband AR Coating has <1% Reflectivity Between 750–1550nm
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Near-UV (NUV) Achromatic Lenses
    • Excellent Transmission in 345 – 700nm Range
    • Ideal for use with NUV LEDs and Mercury Lamps
    • Low-Cost, Cemented Design
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    YAG-BBAR Coated Achromatic Lenses
    • Optimized for <0.25% Absolute Reflectivity at 532nm and 1064nm
    • Excellent Broadband Transmission from 500 - 1100nm
    • Low Cost Alternative to Air-Spaced Focusing Doublets
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    MgF2 Coated Negative Achromatic Lenses
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Broadband AR Coated Negative Achromatic Lenses
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Aspherized Achromatic Lenses
    • Low Cost, Color-Corrected Asphere
    • Better Color Correction than Standard Achromatic Lenses
    • Similar Spherical Aberration Correction to Machined Aspheres
    • Prescription Information Available
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Large Precision Achromatic Lenses
    • Offered in Cemented or Air-Spaced Designs
    • Mounted Versions Available for Easy Integration
    • Feature MgF2 Anti-Reflection Coating
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Hastings Triplet Achromatic Lenses
    • Unique, 3-Element Design
    • MgF2 Coated
    • Steinheil Triplet Achromatic Lenses also Available
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Steinheil Triplet Achromatic Lenses
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    UV-to-NIR Corrected Triplet Lenses
    • Calcium Fluoride and UV Fused Silica Elements
    • Broadband Color-Corrected Design from 193nm to 1000nm
    • Ideal for Fluorescence and Spectroscopy Applications
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    C-Mount Achromatic Pairs
    • C-Mount Designs for Easy Integration into Imaging Applications
    • Feature Integrated Iris for Increased Control of Light Throughput
    • Ideal for Relay or Projection Applications
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Mounted Achromatic Lens Pairs
    • 15mm and 30mm Diameter Options
    • AR Coated Lenses
    • Mounted Achromatic Pairs Kits Available
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Plastic Hybrid Aspheric Lenses
    • Color-Corrected Plastic Aspheres
    • Diffractive Surface Minimizes Chromatic Aberration
    • Low-Cost, Molded Design
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Germanium Infrared (IR) Hybrid Aspheric Lenses
    • Color Corrected for 3 – 5μm
    • Near Diffraction Limited Focusing Performance
    • Full Prescription Data Available
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Precision Aspherized Achromatic Lenses
    • All Glass Color-Corrected Asphere
    • Low f/# Designs
    • Ideal for Imaging and Biotech Applications
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Achromatic Lens Kits
    • Kits Available for 12.5mm and 25mm Diameter Lenses
    • MgF2, VIS 0°, and VIS-NIR Coating Options
    • Compatible with Tube and Optical Cage System Mechanics
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Mounted Near-IR (NIR) Achromatic Lens Pairs
    • 30mm Diameter Package Designed for NIR Applications
    • Optimized for Various Magnification Ratios
    • Ideal for Integration into OEM Applications
    • NIR II Coated for 750-1550nm
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Mounted Achromatic Lens Pairs Kits
    • Each Kit Includes 8 Mounted Achromatic Pairs
    • Ideal for System Prototyping
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Infrared (IR) Achromatic Lenses
    • Color-Corrected for 3-5μm or 8-12μm
    • Near Diffraction-Limited Focusing
    • Full Prescription Data Available

    ×
