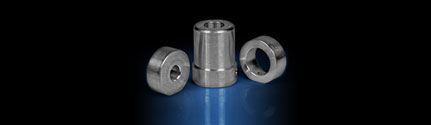

Dolan-Jenner Fiber Optic Adapters

Mate Fiber Optic Light Guides to Fiber Optic Illuminators
25mm Outer Diameter
6061-T6 Aluminum Construction

Dual Branch Light Guides

70% Typical Illuminator Coupling Efficiency
Cool, Uniform Illumination
Crimped Stainless Steel Terminations
Ground and Polished Glass Fibers

Fiber Optic Backlights

High Contrast, Silhouetted Images
Highly Diffuse, Even Light Distribution
Ideal for Line Scan Camera Applications
Used in 2D Vision Systems

Fiber Optic Diffuse Axial Illuminators

Wide-Angle, On-Axis, Diffused Illumination
Factory Hardened, Industrial Rugged Packages
View Objects Perpendicularly

Fiber Optic Line Lights

Fixed Focus and Adjustable Focus Lens Options
Rugged Housing
Low Profile Design Available

Fiber Optic Ring Light Guides

360° Shadow-Free, Cool, Uniform Illumination
Accepts Polarizer Accessories
PVC-Covered Metal Sheathing
Black Anodized Aluminum Housing
70% Typical Illuminator Coupling Efficiency
Crimped Stainless Steel Terminations
Glass Fibers with Ground and Polished End-Faces

Flexible Fiber Optic Light Guides

For use with Fiber Optic Illuminators

Hybrid Light Guides

Stay-Put Stainless Steel Gooseneck
Mountable Aluminum Transition and PVC Monocoil Sheathing
Mounting Accessory Available

Liquid Light Guides

NA = 0.55
No Packing Fraction Loss
Excellent UV Transmission Properties
Higher Overall Transmission than Glass Bundles

Quartz Fiber Optic Light Guides

Designed for UV Applications
Maximize Transmission Efficiency
Multiple Core Sizes Available

Semi-Rigid Light Guides

Stay-Put Stainless Steel Gooseneck
Single and Dual Branch Options

View all Resources Related to Fiber Optic Light Guides

TECHNICAL & APPLICATION INFORMATION

Application Notes
COMMON EQUATION CALCULATORS

Technical Tools
TUTORIALS & PRODUCT OVERVIEWS

Video
Library
NEWEST PRODUCTS & TECHNOLOGIES

TRENDING IN OPTICS
DOWNLOAD PRODUCT INFO

TECHNICAL LITERATURE
Links to Industry Articles

Published Articles

Fiber Optic Light Guides are used to transmit illumination provided by fiber optic illuminators for a number of imaging or microscopy applications. Fiber Optic Light Guides interface with illuminators to transfer light to one of several adapter heads that transmit light in a usable manner. Fiber Optic Light Guides are available in several varieties including backlights or ring lights. Fiber Optic Light Guides offer the benefits of numerous illumination products with only one light source making them cheap, effective alternatives to many other illuminators.

Edmund Optics offers a wide range of Fiber Optic Light Guides suited for many illumination needs. Rigid Fiber Optic Light Guides are able to maintain a set position to allow additional operations during an application. Non-rigid light guides possess superior flexibility allowing for improved maneuverability for tight or delicate applications. Multiple headed light guides are also available for applications requiring more than one illumination source.
