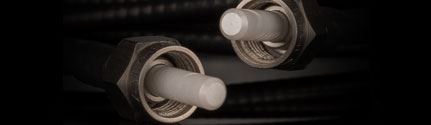

Fiber Optics

• UV/VIS and VIS/NIR Versions Available
• FC Connector Compatible with Spatial Filters
• FC Connector Compatible with Fiber Alignment Mounts
• FC and SMA Connector Options

UV/VIS Optical Fibers

• High OH Content
• Fused Silica Core
• Stepped Index
• Multimode Fiber

VIS/NIR Optical Fibers

• Low OH Content
• Ideal for Use with NIR Diode Lasers
• Fused Silica Core
• Stepped Multimode Fiber

• Superior Light Transmission
• ESKA® Fiber Strands
• Step Index

• Optimal Light Transmission in the Visible Spectrum
• Lowest Attenuation Possible for a Plastic Fiber Optic
• Ideal for Data Transmission Applications

• Fused Glass Optical Fiber Rods with Ground and Polished Faces
• Coherent Arrangement of Fibers Relays Images
• Rigid Rods Bend Under Heat to Almost Any Orientation

• Coherent Arrangement of Fibers
• Made with EMA Fibers to Absorb Light
• Round-to-Round or Round-to-Rectangular Tapers Types Available

• Easy to Integrate
• Models for FC/PC, FC/APC, and SMA Connections Available
• Four Wavelength Ranges Covering 350-1600nm

• Can Be Coupled to Standard 0.22 NA Fiber Optic Cables
• Two Coatings Available for UV-VIS or VIS-NIR
• Multiple Focal Length or Aperture Options

• Female Connectors on Both Ends
• Extend Fiber Patchcord Length
• Brass Construction

• FC Fiber Connection
• Two Axis Linear Movement for Precise Fiber Alignment
• Optional Kinematic Tilt Version
• Posts and Post Holders Required for Mounting

• Cleaves Jacketed and Unjacketed Fiber
• Accepts Fiber up to 3300μm Diameter
• Blade Included

• Two or Three-Port Combiners Available
• Compact Design for Easy System Integration
• High Peak Optical Powers

• 1.52 Index of Refraction at 589nm
• Ideal for Temporary Fiber Slicing
• 6g or 30g Preloaded Syringes
