Manual Stages and Slides

Need Help?
Looking for
Custom Optics?

Category
    Type of Movement
    Guide System
    Type of Drive
    Drive Orientation
    Type
    Stage Size (mm)
    Travel (mm)
    Travel (inches)
    Travel (°)

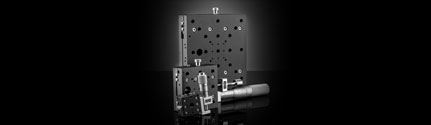

    Crossed-Roller Bearing Linear Translation Stages (Standard-Top Model)
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    Crossed-Roller Bearing Linear Translation Stages (Standard-Top Model)
    • Four Sizes Ranging from 30 x 30mm to 125 x 125mm
    • English and Metric Hole Patterns Available
    • Micrometer and Lead Screw Drive Options
    • Easily Configured into X-Y and X-Y-Z Configurations
    Crossed-Roller Bearing Linear Translation Stages (Thru-Hole Model)
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    Crossed-Roller Bearing Linear Translation Stages (Thru-Hole Model)
    • Four Sizes Ranging from 30 x 30mm to 125 x 125mm
    • Thru-Hole Design for Optical Path Transmission
    • English and Metric Hole Patterns Available
    • Micrometer and Lead Screw Drive Options
    Crossed-Roller Bearing Pre-Assembled Z-Axis Translation Stages
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    Crossed-Roller Bearing Pre-Assembled Z-Axis Translation Stages
    • Pre-Assembled Z-Axis Configuration
    • High Accuracy and Rigidity
    • Compatible with 30mm, 40mm, 70mm and 125mm TECHSPEC® Crossed-Roller Bearing Translation Stages
    Vertical Translation Stages
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    Vertical Translation Stages
    • Mechanically Compatible with our TECHSPEC® Stages
    • Class 100 (ISO 5) Cleanroom Compatible
    • Fine Micrometer Movement
    • Locking Screw on Stages
    Rotary Stages
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    Rotary Stages
    • Low Profile Design
    • Precision Micrometer Drive
    • Slide-Fit Guide System
    • 360° Coarse Rotation, ±5° Total Fine Rotation
    • Mechanically Compatible to Other TECHSPEC® Stages
    • Locking Screw on All Stages
    • Class 100 (ISO 5) Clean Room Compatible
    Tip-Tilt Stages
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    Tip-Tilt Stages
    • Metric and English Hole Pattern Versions Available
    • Tilt Control in Two Axes (Kinematic Movement)
    • Precision Micrometer Drive
    • Mechanically Compatible to Other TECHSPEC® Stages
    Goniometers
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    Goniometers
    • Metric and English Hole Patterns Available
    • Stackable for Two-Axis Rotation
    • Mechanically Compatible with our TECHSPEC® Stages
    X-Y Positioning Stages
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    New
    ×
    X-Y Positioning Stages
    Metric Z-Axis Stages Metric Z-Axis Stages
    • Fine Micrometer Movement
    • Available in Four Sizes
    • Black Anodized Aluminum
    • Locking Knob
    Metric Rotary Stages Metric Rotary Stages
    • Precision Micrometer Drive and Manual Drive Options
    • 360° Coarse Rotation
    • Micrometer Drive Models Provide ±5° Fine Rotation
    • Black Anodized Aluminum Construction
    Metric Tilt Platform Metric Tilt Platform
    • Tilt Control in Two Axes (±2.5°)
    • Multiple Tapped and C’bored Holes for Easy Mounting
    • Black Anodized Aluminum
    Metric Goniometers Metric Goniometers
    • Stackable for Two-Axis Rotation
    • Durable Brass Construction
    • Dovetail Design with Vernier Scale
    Metric Lab Jacks Metric Lab Jacks
    • Rugged, Black Anodized Aluminum Construction
    • Fine Lead Screw for Precision Movement
    • Large Adjustment Knob for Maximum Control
    • Locking Knob to Secure Vertical Positioning
    English Ball Bearing Translation Stages English Ball Bearing Translation Stages
    • Preloaded Ball Bearing Design for Low-Friction Linear Adjustment
    • Solid-Top and Thru-Hole Versions
    • English or Metric Micrometer Drive and Fine Screw Drive Available
    • Stackable for 2-Axis or 3-Axis Movement
    Metric Ball Bearing Translation Stages Metric Ball Bearing Translation Stages
    • Preloaded Ball Bearing Design for Low-Friction Linear Adjustment
    • Solid-Top and Thru-Hole Versions
    • English or Metric Micrometer Drive and Fine Screw Drive Available
    • Stackable for 2-Axis or 3-Axis Movement
    Positioning Stages with Digital Micrometers Positioning Stages with Digital Micrometers
    • 0.001mm Resolution Directly Readable Micrometer
    • Readout in Inches or Millimeters
    • Available with English or Metric Mounting Holes
    Linear Motion Ball Bearing Slides Linear Motion Ball Bearing Slides
    • High Straight Line Accuracy
    • Low Wear, Low Friction Sliding Motion
    • Preloaded to Eliminate Wobble and Unwanted Play
    Linear-Rotary Positioning Stage Linear-Rotary Positioning Stage
    • Compact Stage with Both Linear and Rotary Positioning
    • Linear Adjustment with a Fine Resolution Micrometer
    • Coarse or Fine Rotary Adjustment
    Compact Rotary Stages Compact Rotary Stages
    • Low Wear, Low Friction Movement with Coarse or Fine Adjustment
    • 2 or 2.62" Diameter Stages with Tapped Mounting Holes
    • Calibrated Dial with 12 Minute Vernier for Accurate Read-Out
    Heavy Load Capacity Rotary Positioning Stages Heavy Load Capacity Rotary Positioning Stages
    • Normal Load Capacity of 25lb (11.9kg)
    • Precision Worm Gear Drive
    • Compatible with Metric and English 5" Ball Stages
    Micro Manual Rotary Stage Micro Manual Rotary Stage
    • Small Footprint
    • 17 Degrees of Fine Adjustment
    • 360 Degrees of Coarse Adjustment
    Micro Manual Positioning Stages Micro Manual Positioning Stages
    • Two Micro Sizes Available
    • Versions with Covered Rails
    • Three Travel Selections
    • X, XY, and XYZ Axis Models
    Micro Manual Goniometers New
    ×
    Micro Manual Goniometers
    • Small Footprint
    • Zero-Backlash Drive System
    • 25mm or 42mm Radius Versions Stackable to Create 2-Axis Version
    Miniature Screw Drive Stages Miniature Screw Drive Stages
    • 8-32 or M4 Mounting Options Available
    • Up to 19mm of Linear Travel
    • Three-Start Screw Drive and Precision Lapped Surfaces for Smooth, Accurate Movement
    Leadscrew Drive Stages Leadscrew Drive Stages
    • Locking Knobs for Secure Positioning
    • 0.5mm Travel per Knob Rotation
    • Available with up to 15mm Travel in X and Y with 12mm Travel in Z
    Rack and Pinion Stages Rack and Pinion Stages
    • Aluminum Stage with Brass Rack and Pinion
    • 20mm Travel per Knob Rotation
    • Scale Features 1mm Increments with Locking Lever
    • Basic Rack and Pinion Stages Also Available
    Basic Rack and Pinion Stages Basic Rack and Pinion Stages
    • Multiple Configurations Available
    • High Load Capacity
    • Ideal for Applications Requiring Long Travel
    • Additional Rack and Pinion Stages Available
    X-Y-Z Positioning Movement X-Y-Z Positioning Movement
    • 50mm Diameter Optical Mount
    • Includes Durable Mounting Base
    • Helical Rack and Pinion Drive Mechanism
    Long Travel Rack and Pinion Stages
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    Long Travel Rack and Pinion Stages
    • Carriers Feature One or Two Knobs, with English or Metric Mounting Hole Patterns
    • Available with Both English and Metric Track Lengths
    • Preassembled Common Carrier and Track Combinations are Available
    • Vernier Scales of 0.01” or 0.1mm Resolution
    Dovetail Optical Rail Systems Dovetail Optical Rail Systems
    • Wide Range of Carrier Length and Mounting Hole Options Available
    • Low Profile Design with Smooth Movement
    • Increased Stability and <1mrad Straight Line Accuracy
    Compact Optical Rail Systems Compact Optical Rail Systems
    • Rails and Carriers Available
    • Mount on English and Metric Breadboards
    • Low Profile Design
    X-Y Positioning Tables X-Y Positioning Tables
    • Available Options of 70mm (±35mm)and 200mm(±100mm)Travel in Both X and Y
    • Ball Bearing or Rack and Pinion Movements for Fast Adjustment
    • Solid Top Designs
