Products / Optomechanics / Manual Translation Stages and Slides / Manual Stages and Slides
Family ID The Family ID is used to identify product family presentations and can be used to quickly access presentations utilizing the search. #3467

Basic Rack and Pinion Stages

#36-347

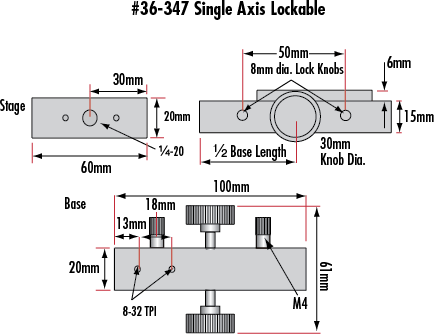

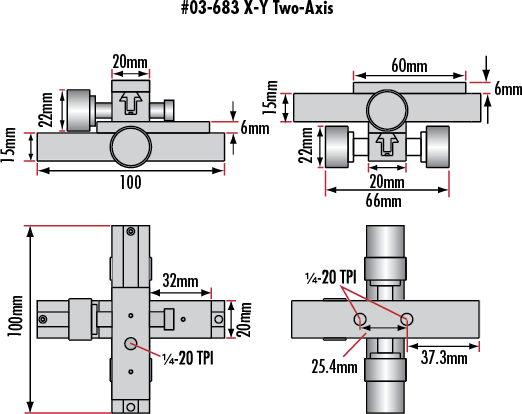

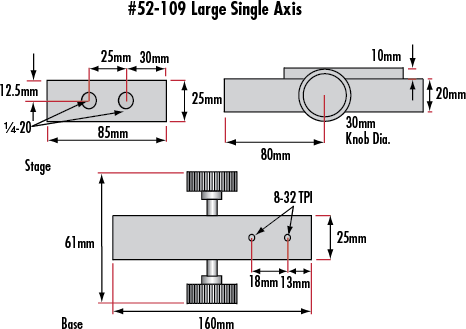

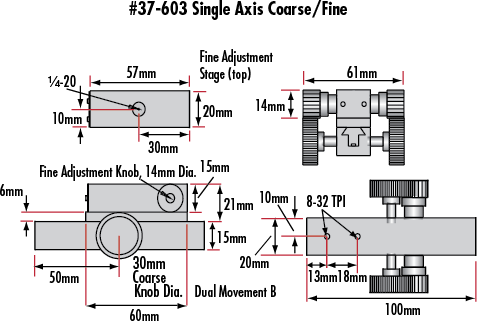

#36-347 #37-603 #52-109 #03-682 +4
×
  • Multiple Configurations Available
  • High Load Capacity
  • Ideal for Applications Requiring Long Travel
  • Additional Rack and Pinion Stages Available

Basic Rack and Pinion Stages are ideal for applications requiring high load capacity or long travel. These stages feature horizontal load capacities of 3.5kg and vertical load capacities of 2.1kg. Each stage offers stage and base mounting holes and features steel construction with brass movement.
