    Benchtop System

    Optical Posts | View All

    English Stainless Steel Mounting Posts
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    English Stainless Steel Mounting Posts
    • Male 8-32 or ¼-20 Stud, Female ¼-20 Base
    • Posts Include Interchangeable Male Stud and Removable Base S.H.S.S.
    • Available in Variety of Lengths
    • Metric Versions Also Available
    Metric Stainless Steel Mounting Posts
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Metric Stainless Steel Mounting Posts
    • Male M4 x 0.7 or M6 x 1.0 Stud, Female M6 x1.0 Base
    • Posts Include Interchangeable Male Stud and Removable Base S.H.S.S.
    • Available in Variety of Lengths
    • English Versions Also Available
    Stainless Steel Mounting Posts
    Stainless Steel Mounting Posts
    • English or Metric Options
    • English Posts: ¼-20 Tapped Base, 8-32 or ¼-20 S.H.S.S.
    • Metric Posts: M6 Tapped Base, M4 or M6 S.H.S.S.

    Optical Post Holders and Mounting Bases | View All

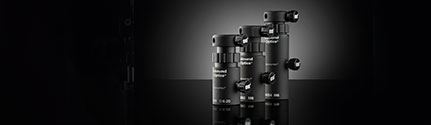

    Post Holders
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Post Holders
    • English & Metric Post Holders
    • English: ¼-20 Base
    • Metric: M6x1 Base
    • Unique 3-Point Contact Design
    • Aluminum with Brass Inserts
    Adjustable Height Post Holders
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Adjustable Height Post Holders
    • English and Metric Versions
    • ¼-20 Base for English Version and M6 x 1 Base for Metric Version
    • Provides Vertical Translation
    • Compatible With 0.5" (12.7mm) Posts
    Post Collar
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Post Collar
    • Locks Post Height Without Removing Post
    • Allows Basic Post Rotation
    • For Our 0.5" (12.7mm) Diameter English and Metric Posts
    • Aluminum Collar
    English Rotating Adapter Plate
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    English Rotating Adapter Plate
    • Ideal for use with Post and Post Holder Applications
    • Features ¼-20 Male/Female Threads
    • Rotates 360° and Includes Locking Set Screw
    Post Holder Assemblies
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Post Holder Assemblies
    • 2" Post Holder Plus Slotted Base
    • Two Options for Our Most Popular Slotted Bases
    English Post Pivot Base
    English Post Pivot Base
    • Slot Adjustment Range of 1.00"
    English and Metric Magnetic Bases
    English and Metric Magnetic Bases
    • English and Metric Versions Available
    • Includes Component Mounting Plate
    Metric Low Profile Magnetic Base
    Metric Low Profile Magnetic Base
    • Two Magnetic Strengths
    • Convenient for Quick Set-up and Positioning
    Height Adjustment Platforms
    Height Adjustment Platforms
    • Large 200mm x 120mm Size Plate Set
    • 20mm Diameter Stainless Steel Posts with Male and Female M6 Threads
    • Use with Lab Jacks to Extend Working Surface

    Optical Post Accessories | View All

    45° Mounting Adapters
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    45° Mounting Adapters
    • Fixed 45 Degree Mounting
    • 3 Options for Different Offsets
    • Aluminum Mount
    Right Angle Post Clamps
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Right Angle Post Clamps
    • Basic Building Block for Optical Systems
    • Fixed Options for Mounting 12.7mm to 12.7mm or 12.7mm to 12.0mm Posts Available
    • Rotatable Option for 12.7mm to 12.7mm Posts
    • Aluminum Mount Construction
    Ring Mounts
    Ring Mounts
    • For Mounting 25mm or 30mm Dia. of Aluminum Tubes/Mounts
    • ¼-20 Mounting Hole for Post Mounting Applications
    • Used for Mounting Cylindrical Components
    Thread-to-Thread Adapters
    Thread-to-Thread Adapters
    • Male to Female Thread Design
    • Ideal for Mating Optical Mounts and Components
    • For use with ¼-20 or M6 Breadboard Applications
    Tie-Down Table Clamp
    Tie-Down Table Clamp
    • Slot Adjustment Range of 1.00"

    Imaging Mechanics | View All

    Articulating Arm Mounting Systems
    Articulating Arm Mounting Systems
    • Mounting for Hard-to-Reach Places
    • Mix and Match for Custom Mounting Combinations
    • Lockable Angular Positioning
    SLIK Mini-Pro Compact Tripod
    SLIK Mini-Pro Compact Tripod
    • Easily Mounts to Cameras with ¼-20 Mounting
    • 180° Tilt Ball Head and 360° Column Rotation for Maximum Flexibility
    • Features Two-Section Legs for Easy Storage
    Rack and Pinion Focusing Mounts for Imaging Systems
    Rack and Pinion Focusing Mounts for Imaging Systems
    Stainless Steel Posts for Imaging Systems
    Stainless Steel Posts for Imaging Systems
    • Posts for Integration into Imaging Systems
    • Vertical Posts Thread to Bases and Platforms
    • Horizontal Arms Thread to Posts and Microscope Head Mounts
    • Rack and Pinion Focusing Mounts, and Accessories also Available
    Imaging System Bases
    Imaging System Bases
    Rotatable Angle Bracket and Post Clamp
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Rotatable Angle Bracket and Post Clamp
    • Component Positioning at Arbitrary Angles
    • Compatible with ¾" Posts for English Breadboards
    • Ideal for Mounting Video Cameras and Lenses
    • Both Horizontal and Vertical Rotation
    Accessories for Imaging Systems
    Accessories for Imaging Systems
    Boom Stands
    Boom Stands
    • Standard, Ball Bearing, and Articulating Arm Styles
    • Mounting Adapters Sold Separately
    • Nine Possible Combinations of Boom Stands and Mounts Available
    Boom Stand Mounting Adapters
    Boom Stand Mounting Adapters
    • Standard and Deluxe Versions Available
    • ¼-20 Mounting
    • Compatible with our Most Popular Line of Boom Stands
    Pan-Tilt Mounts
    Pan-Tilt Mounts
    • Load Capacities of 6 lbs and 9 lbs
    • Plug and Play Capability
    • RS-232/485 Computer Controls
    • Available in Nodal Configurations
    X-Y Positioning Platform
    X-Y Positioning Platform
    • 200mm Travel in Both X and Y
    • Ball Bearing Slides with Nylon Thumb Screws

    Benchtop Brackets and Plates | View All

    Universal Right Angle Brackets New
    ×

    Universal Right Angle Brackets
    • Universal Design Works With Metric and English Bench Plates and Breadboards
    • Uses Standard ¼-20 or M6 Socket Head Cap Screws
    • Black Anodized Aluminum Construction
    90° Angle Brackets
    90° Angle Brackets
    • Metric, English and Common Slotted Versions
    • Standard ¼-20 or M6 x 1.0 Holes/Slots or AllSlots
    • Large and Small Sizes
    • Black Anodized Aluminum Construction
    Z-Axis Brackets for Ball Bearing Stages
    Z-Axis Brackets for Ball Bearing Stages
    • Combine Ball Bearing Stages into 3 Axis Positioning Systems
    • Designs for 1.25, 1.75, 2.62, and 5" Stages
    • Aluminum Construction with Black Anodized Finish
    Threaded Base Plates
    Threaded Base Plates
    • Two Size Options
    • Two Platform Options: English or Metric
    • English: Four #8-32 holes on½” Square and Four ¼-20 Holes on 1" Square
    • Metric: Four M4 x 0.7 holes on 12.5mm Square and Four M6 x 1 Holes on 25mm Square
    • Anodized Aluminum Construction
    Metric Base Plates
    Metric Base Plates
    • Three Sizes Available
    • Mates With Metric Posts Using Adapter #55-036
    • Slotted Design for Both Metric and English Breadboards
    • Mounting Holes Designed for Our Metric Line of Components
    • Black Anodized Aluminum Construction
    Side to Side Sliding 2" x 3" Base Plate
    Side to Side Sliding 2" x 3" Base Plate
    • Increase the Versatility of Existing Mounting Equipment
    • Ideal for Direct Mounting to Standard Breadboards
    • Counterbored ¼-20 or M6 × 1.0 Holes/Slots
    Sliding 2" x 3" Base Plate
    Sliding 2" x 3" Base Plate
    • Increase the Versatility of Existing Mounting Equipment
    • Ideal for Direct Mounting to Standard Breadboards
    • Counterbored ¼-20 or M6 x 1.0 Holes/Slots
    Adapter Plates for Ball Bearing Stages and Slides
    Adapter Plates for Ball Bearing Stages and Slides
    • Designed for Our Linear Positing Stages and Slides
    • Centered ¼-20 Hole Enables Use with Posts and Post Holders
    3" Diameter Rotary Plate
    3" Diameter Rotary Plate
    • Increase the Versatility of Existing Mounting Equipment
    • Ideal for Direct Mounting to Standard Breadboards
    • Aluminum Plate with ¼-20 Counterbored Holes
    3" Diameter Mounting Base
    3" Diameter Mounting Base
    • Low Profile Circular Mounting Base
    • Cross Slots for Mounting with Bar-Type Holders
    • ¼-20 Hole for Mounting
    Right Angle Bracket
    Right Angle Bracket
    • Allows for Perpendicular Mounting of Bench Plates
    • 1" Thick Black Anodized Aluminum Construction
    • Available Individually or as a Set of 2

    ×
