Pinholes and Slits

Need Help?
Looking for
Custom Optics?

CONTACT AN EXPERT


CHAT   EMAIL

Category
    Type
    Outer Diameter (mm)
    Construction
    Fixed Aperture Diameter (μm)
    Slit Length (mm)
    Slit Width (μm)

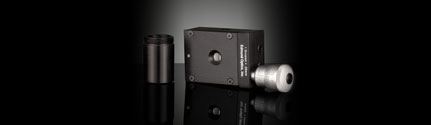

    Adjustable Optical Slit Adjustable Optical Slit
    • 6mm Maximum Clear Slit Opening
    • Fine Micrometer-Driven Adjustment
    • ¼-20 Hole for Mounting
    Acktar Blackened Pinholes New
    ×
    Acktar Blackened Pinholes
    • Low Reflectance from the EUV to SWIR
    • 99% Absorbance Blackening Coating
    • Aperture Sizes from 50 to 1000μm
    • Available Unmounted and Mounted
    Acktar Blackened Air Slits New
    ×
    Acktar Blackened Air Slits
    • Wide-Band Low Reflectance Coating
    • 99% Absorbance from the EUV to SWIR
    • Slit Sizes Down to 25μm x 3mm
    • Unmounted and Mounted Versions Available
    High Power Apertures High Power Apertures
    • Ceramic, Copper, Gold-Plated Copper, Molybdenum, or Tungsten Substrates
    • Withstand High Power Densities up to 130MW/cm2 (For Mo and W Substrates)
    • Ideal for Spatial Filtering and Laser Aperturing
    Precision Air Slits Precision Air Slits
    • Mounted Version Provides Secure Mechanical Support
    • Used in Optical Systems and Educational Efforts
    • Ideal for Spectrophotometer Image Analysis
    Precision Pinholes Precision Pinholes
    • Available in Aperture Mounts for a Secure Mechanical Support
    • Pinhole Sized Ranging from 1 to 1,000 Microns
    • High Power Apertures Available

    View all Resources Related to Pinholes and Slits

    Pinholes and Slits are used to provide a fixed or adjustable aperture through which laser beams may be directed in a number of laser applications such as spatial filtering. Pinholes and Slits consist of variously shaped apertures within a range of materials or coatings designed to reflect or absorb laser light that does not pass through the opening. A selection of mounts is also available for holding aperture slides.
