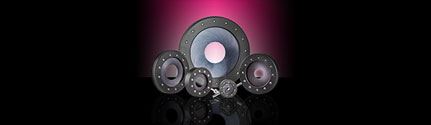

    Iris Diaphragms

    Iris Diaphragms are used to limit the amount of light transmitted to an imaging sensor or photodetector in order to prevent oversaturation. Iris Diaphragms are optical components that feature a series of smooth, thin leaves arranged to form a circular aperture which can be opened or closed depending on the application. Iris Diaphragms allow the amount of ambient light reaching a sensor to be controlled to ensure effective imaging.

    Edmund Optics offers a wide range of Iris Diaphragms suited for many imaging needs. Iris Diaphragms are ideal for adapting imaging systems for a number of different applications or environments that would otherwise be too bright by limiting the amount of light in an area to manageable levels. Some Iris Diaphragms may be mounted directly onto imaging components or may be positioned separately in front of light sensors, offering multiple implementation choices. A selection of sizes as well as mounting accessories is also available for a range of versatile options.

    High Performance Motorizable Irises
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    High Performance Motorizable Irises
    • Fast Accurate Repeatable Motion
    • Dual Control Gear and Lever Mechanics
    • Removable Pin for OEM Integration
    High Performance Standard Series Iris Diaphragms
    High Performance Standard Series Iris Diaphragms
    • Corrosion Resistant Housing
    • High Heat Resistance
    • AR Spring Steel or Burnished Spring Steel Leaf Options Available
    High Performance Zero Aperture Series Iris Diaphragms
    High Performance Zero Aperture Series Iris Diaphragms
    • Iris Completely Closes
    • Corrosion Resistant Housing
    • High Heat Resistance
    • Burnished Spring Steel and Stainless Spring Steel Leaf Options Available
    Iris Diaphragm with Filter Holder and Post
    Iris Diaphragm with Filter Holder and Post
    • 1-30mm Lever Adjustable Aperture
    • Filter Holder on Face for 33mm Dia. x 2mm Thick Components
    • Includes Ring Mount and Stainless Steel Post

    ×
