Family ID The Family ID is used to identify product family presentations and can be used to quickly access presentations utilizing the search. #2126

Fiber Optic Alignment Mounts

2-Axis Fiber Alignment Mount w/ Standard Kinematic Movement, #55-476
2-Axis Fiber Alignment Mount w/ Micrometer Kinematic Movement	, #55-477
Fiber Alignment Mount w/ Gimbal Tilt and Micrometer Movement, #55-478

2-Axis Fiber Alignment Mount w/ Standard Kinematic Movement, #55-476

2-Axis Fiber Alignment Mount w/ Micrometer Kinematic Movement , #55-477

Fiber Alignment Mount w/ Gimbal Tilt and Micrometer Movement, #55-478


  • FC Fiber Connection
  • Two Axis Linear Movement for Precise Fiber Alignment
  • Optional Kinematic Tilt Version
  • Posts and Post Holders Required for Mounting

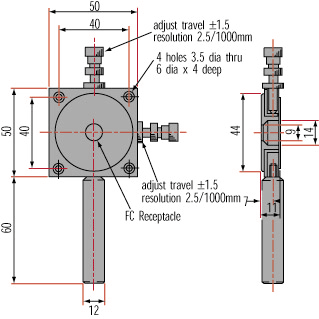

Fiber Optic Alignment Mounts can translate optical fibers terminating in an FC connection. Useful for telecom positioning and for aligning FC Fiber Optic Patchcords, they feature ±1.5mm travel in both the X and Y-axis. The Differential Micrometer models feature 2.5 micron resolution while the kinematic version (#55-478) provides an additional ±2° tilt adjustment on each axis.

Note: Posts and Post Holders are required for mounting to a breadboard.
