Quartz Fiber Optic Light Guides

Designed for UV Applications
Maximize Transmission Efficiency
Multiple Core Sizes Available

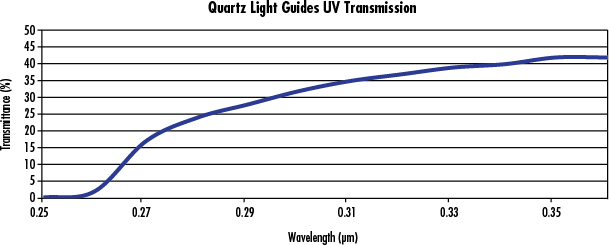

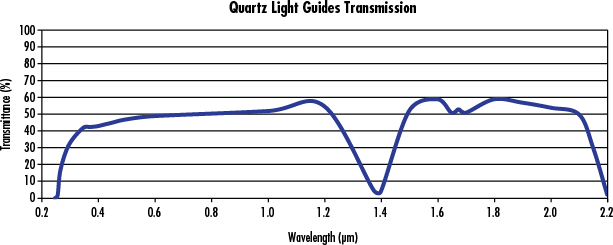

Economical Industrial Grade UV quartz fiber optic light guides are designed for ultraviolet applications; they will show some fluorescence at 245nm and darken in gamma or X-ray environments. These plastic-clad quartz fibers provide maximum transmittance efficiency due to the 10:1 core/clad ratio and high flexibility from the small fiber diameter. Sheathing is PVC-covered monocoil; terminations are stainless steel. Light guide adapters (not included) needed to mate with fiber optic illuminators.

The correct adapter will depend on the tip diameter of the light guide. Fibers #38-954 and #38-955 use #38-943, and #38-956 uses #38-944.

Technical Information


Length	A	B	C	D	Stock No.
36.0"	0.062"	0.205"	0.190"	0.187"	#38-954
36.0"	0.125"	0.312"	0.268"	0.187"	#38-955
36.0"	0.250"	0.468"	0.430"	0.312"	#38-956
