Rhomboid Prisms

Lateral Displacement of Beam
Displaces Optical Axis Without Inverting Image
Input and Output Beams Parallel to ±30 Arcseconds
Beam Displacing Dove Prisms Also Available

TECHSPEC® Rhomboid prisms are commonly used to displace a laser beam without changing its direction. In imaging applications, rhomboid prisms will displace the optical axis without inverting the image. The lateral displacement is equal to the length of the prism (specified by dimension D). TECHSPEC® Rhomboid Prisms feature high tolerance angles that keep the output beam parallel to the input beam to within 30 arcseconds. They are ideal for demanding displacement applications.

Products
Technical Information
Accessories
Related Products
Custom
Resources

Products

Technical Information

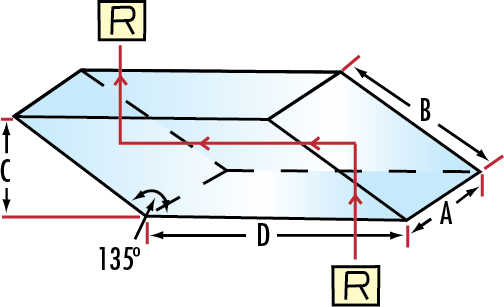

Rhomboid Prism Ray Path

Rhomboid Prism Tunnel Diagram


Stock No.	A	B	C	D
#47-625	5mm	5mm	3.5mm	7.1mm
#47-806
#47-213	10mm	10mm	7.1mm	14.1mm
#47-807
#49-418	12.5mm	12.5mm	8.8mm	17.5mm
#49-421
#49-419	15mm	15mm	10.5mm	21.2mm
#49-422
#47-214	20mm	20mm	14.2mm	28.3mm
#47-808
#47-626	25mm	25mm	17.7mm	35.4mm
#47-809
#49-420	50mm	50mm	35.4mm	70.7mm
#49-423
