Ball Lens Calculator

Determine the effective focal length, the back focal length, and the effective numerical aperture of a ball lens based on its diameter, its refractive index, and the diameter of the collimated beam entering or exiting the ball lens. The effective numerical aperture of the application can only be calculated if the user knows the beam diameter. Knowing the numerical aperture is particularly useful when using ball lenses to couple light from a fiber to a laser or to another fiber.

EFL (mm) : --
BFL (mm) : --
NA: --

Ball Lens Material:

n: --



Ball Lens Calculator

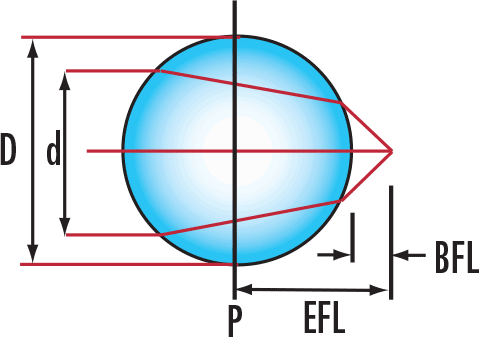

Equations and Corresponding Legend

$$ \text{EFL} = \frac{n \, D}{4 \left( n - 1 \right)} $$
$$ \text{BFL} = \text{EFL} - \frac{D}{2} $$
$$ \text{NA} = \frac{2 d \left( n - 1 \right) }{n \, D} $$
EFL Effective Focal Length
BFL Back Focal Length
NA Numerical Aperture
n Refractive Index
D Diameter of the ball lens
d Diameter of the input source

Related Resources and Products

  Application Notes

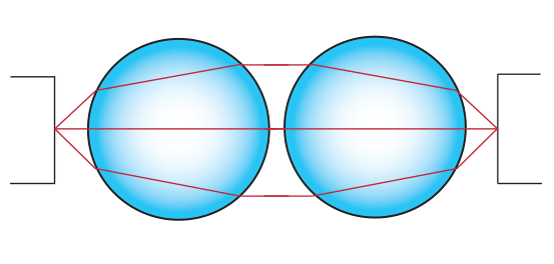

Understanding Ball Lenses
