Name: 25.4mm Dia., 355nm, λ/10 Ultra-Low Reflectivity Window
Brand: TECHSPEC
SKU: 11-246
Price: €79,95

Angle of Incidence (°):

Bevel:

Protective as needed

Clear Aperture CA (mm):

22.86

Coating:

Laser Ultra V-Coat (355nm)

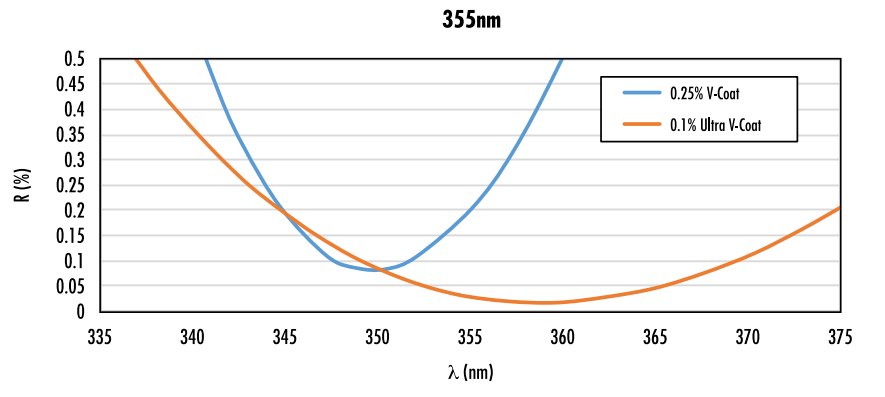

Coating Specification:

R_abs <0.10% @ 355nm

Diameter (mm):

25.40 +0.00/-0.10

Thickness (mm):

6.35 ±0.20

Damage Threshold, Pulsed:

7.5 J/cm² @ 355nm, 20ns, 20Hz

Design Wavelength DWL (nm):

355

Parallelism (arcmin):

Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More

Fused Silica (Corning 7980)

Fused Silica Grade:

7980 0F

Surface Flatness (P-V):

λ/10

Surface Quality:

10-5

Type:

Laser Line Window

Young's Modulus (GPa):

Coefficient of Thermal Expansion CTE (10^-6/°C):

0.52 (+5 to +35°C)
0.57 (0 to +200°C)
0.48 (-100 to +200°C)

Density (g/cm³):

2.20

Index of Refraction n_d:

1.458

Poisson's Ratio:

0.16

Abbe Number (v_d):

67.8

Edges:

Fine Ground

7.5 J/cm² @ 355nm, 20ns, 20Hz

Regulatory Compliance

RoHS 2015:

Compliant

Reach 219:

Compliant

Certificate of Conformance:

View

Product Family Description

<0.1% Reflectivity Laser Line Coatings
Nd:YAG and Yb:YAG Wavelength Options
Reduce Typical Laser System Losses by 3% (Compared to a 0.25% Specified System with 10 Transmissive Optics)
Increased Transmission Reduces Back Reflections, Ghost Images, and Stray Light

TECHSPEC^® λ/10 Ultra-Low Reflectivity Windows feature anti-reflection coatings with reflection lower than 0.1% at the design wavelength. These windows feature high quality fused silica substrates with λ/10 surface flatness and 10-5 surface quality to minimize scatter. With ultra-low reflectivity and high damage thresholds, these windows are ideal for integration into laser systems to virtually eliminate surface reflections. TECHSPEC λ/10 Ultra-Low Reflectivity Windows are available in a range of laser V-Coats from 266nm to 1064nm for compatibility with Nd:YAG and Yb:YAG laser sources. Imperial diameter sizes from 12.7mm to 50.8mm are available.
