25mm VIS-EXT, 50R/50T, Non-Polarizing Cube Beamsplitter

Stock #11-289
- +
Qty 1-5
Qty 6+
Volume Pricing
Request Quote
Get Product Downloads
Beam Deviation (arcmin):
Protective bevel as needed
Clear Aperture (%):
VIS-EXT (400-640nm)
Coating Specification:
Ravg <0.5% @ 400 - 640nm
Dimensions (mm):
25.0 x 25.0 x 25.0 ±0.1
Reflection/Transmission Ratio (R/T):
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Surface Flatness (P-V):
Surface Quality:
Non-Polarizing Beamsplitter
Wavelength Range (nm):
400 - 640
Absolute Transmission (%):
45 ±10

Regulatory Compliance

RoHS 2015:
Reach 219:
Certificate of Conformance:

Product Family Description

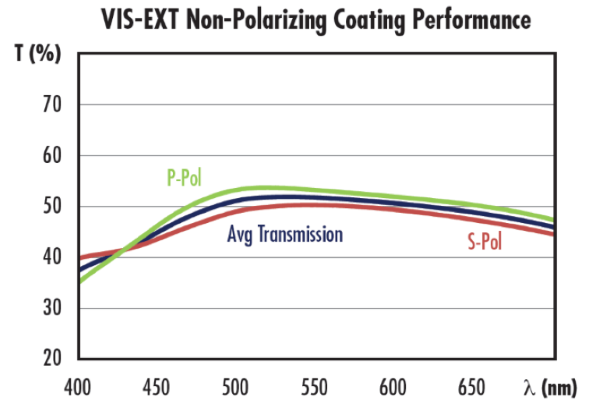

  • Low Polarization Dependence: |Ts-Tp|<6%
  • Constructed from High Tolerance Right Angle Prisms
  • BBAR Coated Faces for Maximum Efficiency
  • C-Mounted Visible and NIR Cube Beamsplitters Also Available

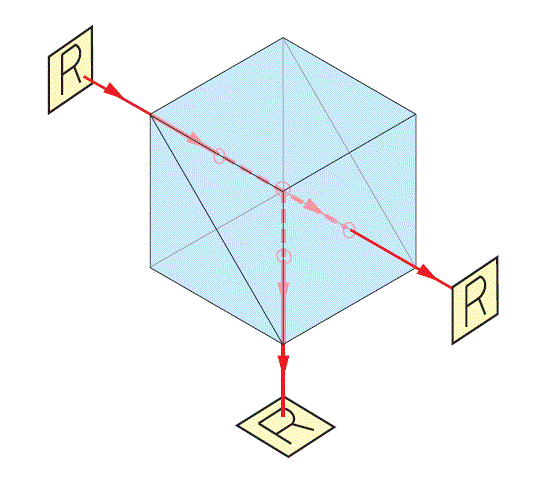

TECHSPEC® Broadband Non-Polarizing Cube Beamsplitters consist of a pair of precision high tolerance right angle prisms cemented together with a metallic dielectric coating on the hypotenuse of one of the prisms. The low polarization dependence of the metallic dielectric hybrid coating allows the transmission and reflection of S- and P-polarization states to be within 6% of each other. These beamsplitters are spectrally flat across their specified wavelength ranges, reducing effects caused by changes in the angle of incidence or converging/diverging beams.
