Brewster Windows

×
  • Reduce Loss of P-Polarized Light
  • Circular Profile When Oriented at 55.57°
  • Great for Use in Laser Cavities

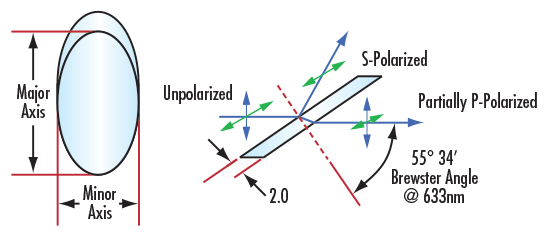

TECHSPEC® Brewster Windows are designed to present a circular profile when oriented at Brewster’s angle (55.57°). TECHSPEC® Brewster Windows feature laser grade surface quality and parallelism, in addition to limiting transmitted wavefront distortion to λ/10. When used at 55.57°, these windows minimize the loss of P-polarized light, ideal for use within laser cavities and for producing linearly polarized light.

Laser Optics

Common Specifications

Thickness (mm):
2.00 ±0.20
Edges:
Fine Ground
Parallelism (arcsec):
≤10
Young's Modulus (GPa):
73
Construction:
Brewster Window
Coating:
Uncoated
Design Wavelength DWL (nm):
632.8
Index of Refraction (nd):
1.458
Substrate:
Fused Silica (Corning 7980)
Surface Quality:
10-5
Transmitted Wavefront, P-V:
λ/10
Wavelength Range (nm):
200 - 2200
Coefficient of Thermal Expansion CTE (10-6/°C):
0.52 (+5 to +35°C)
0.57 (0 to +200°C)
0.48 (-100 to +200°C)

Products

 Thickness (mm)   Coating   Edges   Minor Axis (mm)   Substrate   Compare   Stock Number   Price  Buy
2.00 Uncoated Fine Ground 10.00 Fused Silica #65-823 €86,00 Qty 11+ €77,50   Request Quote
  • 3-4 days
    ×

2.00 Uncoated Fine Ground 12.50 Fused Silica #65-824 €93,50 Qty 11+ €84,00   Request Quote
  • 3-4 days
    ×

2.00 Uncoated Fine Ground 25.00 Fused Silica #65-827 €125,00 Qty 11+ €112,00   Request Quote
  • 3-4 days
    ×


Technical Information

Custom

Edmund Optics offers comprehensive custom manufacturing services for optical and imaging components tailored to your specific application requirements. Whether in the prototyping phase or preparing for full-scale production, we provide flexible solutions to meet your needs. Our experienced engineers are here to assist—from concept to completion.

Our capabilities include:

  • Custom dimensions, materials, coatings, and more
  • High-precision surface quality and flatness
  • Tight tolerances and complex geometries
  • Scalable production—from prototype to volume

Learn more about our custom manufacturing capabilities or submit an inquiry here.
