Family ID The Family ID is used to identify product family presentations and can be used to quickly access presentations utilizing the search. #2750

Silicon (Si) Windows

TECHSPEC Silicon (Si) Windows

TECHSPEC Silicon (Si) Windows


×
  • Transmission from 1.2 - 7μm

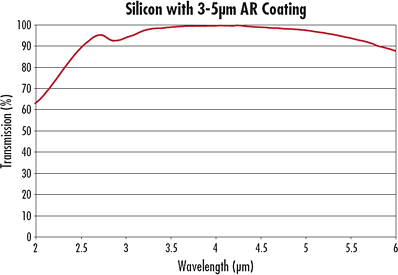

  • Available Uncoated or AR Coated for 3 - 5μm
  • Ideal for Weight Sensitive Applications

TECHSPEC® Silicon (Si) Windows manufactured from optical grade silicon are popular for the 1.2 - 7μm spectral region due to their low cost and low density. Due to its low density (half that of germanium or zinc selenide), silicon is ideal for weight sensitive applications, especially those in the 3 - 5μm region. Density is 2.329 g/cm3 and Knoop Hardness is 1150, making it harder and less brittle than germanium.
