Photometrics Prime BSI Express, USB 3.2 Camera, 1T-01-PRIME-BSI-EXP

Name: Photometrics Prime BSI Express, USB 3.2 Camera, 1T-01-PRIME-BSI-EXP
SKU: 90-390
Price: €15.000,00 EUR

Stock #90-390 New 1 In Stock

- +

€15.000,00

Volume Pricing
Qty 1+	€15.000,00 each
Need More?	Request Quote

Prices shown are exclusive of VAT/local taxes

+ Add to Saved List
Create an account or log in to access saved list

Compare

Product Downloads

Specifications

General

Type:

Monochrome Camera

Model Number:

1T-01-PRIME-BSI-EXP

Manufacturer:

Teledyne Photometrics

Camera Series:

Prime BSI Express

Note:

Includes:
USB 3.2 Gen 2 Cables
USB 3.2 Gen 2 Interface Card
12V/ 5A power supply with international power cord set
(2) Single-line MMCX trigger cables
USB memory device containing PVCAM library and drivers
Quick Installation Guide

Spectrum:

Monochrome

Physical & Mechanical Properties

Dimensions (mm):

78 x 78 x 88

Weight (g):

760

Housing:

Full

Optical Properties

Wavelength Range (nm):

200 - 1100

Sensor

Sensor Format:

1.2"

Resolution (Megapixels):

4.20

Frame Rate (fps):

95.00

Pixels (H x V):

2,048 x 2,048

Sensing Area, H x V (mm):

13.31 x 13.31

Imaging Sensor:

GPixel Gsense 2020BSI

Type of Sensor:

Progressive Scan CMOS

Shutter Type:

Rolling

Pixel Depth:

11, 12, 16 bit

Exposure Time:

6μs- 10s

Dynamic Range (dB):

Hardware & Interface Connectivity

Connector:

USB 3.2 Gen 2

Power Supply:

Power over GPIO with #90-399

GPIOs:

1 configurable input, 3 configurable outputs

Synchronization:

Hardware Trigger (GPIO) or Software Trigger

Interface Port Orientation:

Back Panel

GPIO Connector Type:

BNC

Threading & Mounting

Mount:

C-Mount

Mounting Threads:

(1) ¼–20 thread per side

Environmental & Durability Factors

Operating Temperature (°C):

0 to 30

Storage Temperature (°C):

–20 to 60

Regulatory Compliance

Certificate of Conformance:

View

Product Details

Highly Sensitive Back-Illuminated sCMOS for Scientific Applications

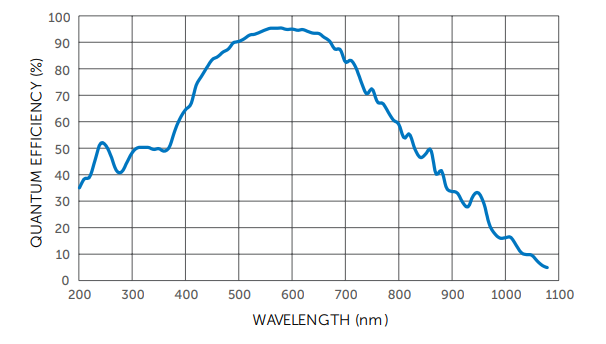

95% QE and Ultra-Low 1.0 e⁻ Read Noise
95 fps Over USB 3.2
Scientific Cameras for High Sensitivity Microscopy Applications

Teledyne Photometrics Prime BSI Express USB 3.2 Cameras feature a highly sensitive back-illuminated sCMOS sensor. This sensor provides a 95% peak quantum efficiency and ultra-low 1.0 e⁻ median read noise, delivering a high signal-to-noise ratio and outstanding performance in low-light imaging conditions. These cameras are designed to achieve up to 95 frames per second using a USB 3.2 interface, enabling high-speed imaging and fast data transfer. Teledyne Photometrics Prime BSI Express USB 3.2 Cameras are ideal for fluorescence, calcium imaging, and live-cell microscopy. These cameras include Teledyne's proprietary-designed software platforms, Beacon and PVCAM, for optimizing camera performance and ease of system integration.
