50 x 50mm Wire Grid Polarizing Film

Wire Grid Polarizing Film

Wire Grid Polarizing Film

Stock #33-083
€165.00
×
Qty 1-5
€165.00
Qty 6
€140.50
Operating Temperature (°C):
60 Max @ 90% RH
105 in dry conditions
Substrate:
TAC Film
Dimensions (mm):
50.0 x 50.0
Extinction Ratio:
4250:1
Construction:
Wire Grid
Wavelength Range (nm):
400 - 1200
Contrast:
>4, 250:1 (@ 550nm)
Transmission (%):
85 (Typical @ 550nm)
Dimensional Tolerance (mm):
+0/-0.5
Thickness (μm):
80.00
Orientation of Axis:
0° ± 1.5°, marked by Notch
Angle of Incidence (°):
0 - 45
Type:
Linear Polarizer
Type of Optics:
Aluminum Wires on TAC Film
RoHS:

Product Family Description

  • High Contrast, Reflective Design
  • Excellent Visible and NIR Performance
  • Superior Durability Under High Temperatures and Humidity

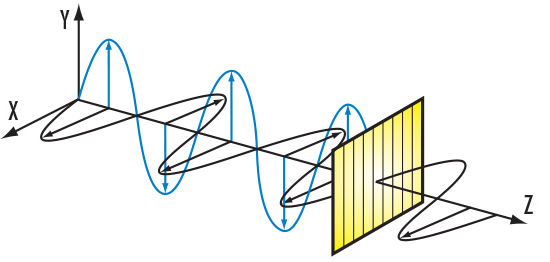

TECHSPEC® Wire Grid Polarizing Film is ideal for applications requiring high contrast polarization, including pico projectors, polarizing beamsplitters, and heads up displays. Wire Grid Polarizing Film is designed to transmit the required polarization state while reflecting the unwanted state. Since these polarizers have spectrally flat performance at angle of incidences up to 45°, they can also be used as polarizing beamsplitters. Additionally, TECHSPEC® Wire Grid Polarizing Film feature excellent durability in high temperature or humid environments and provide excellent performance in the visible and NIR spectra from 400 – 1200nm.

Note: Due to the wire grid being exposed, special care should be taken when handling to prevent damage to the polarizer.
