Swivel Arm

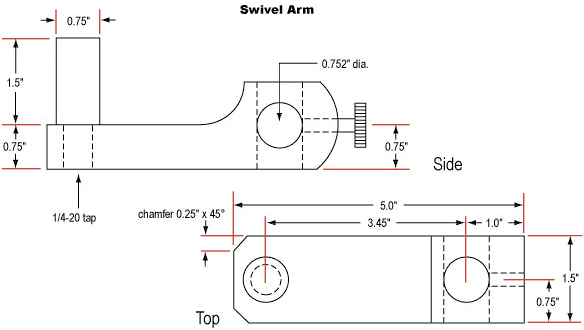

#03-684 Swivel Arm

#03-684 Swivel Arm

Stock #03-684
Qty 1
Dimensions (inches):
1.5 W x 5 L x 1.5 H
Dimensions (mm):
127 x 38.1 x 38.1
Mounting Adapter
Weight (lbs):
Black Anodized Aluminum with Stainless Steel Post

Product Family Description

Accessories for Imaging Systems are available for increasing the versatility of an imaging system. The swivel arm adds an axis of rotation to the rack and pinion focusing mounts. The swivel arm can rotate around a vertical post, and the rack and pinion focus mount can rotate around the ¾" post attached to the swivel arm. The Infinity microscope mounting adapter is compatible with Rack and Pinion Mount #39-357, and reduces the thru hole diameter to 58mm. The 90° angle mount allows the mounting of posts at 90°. Ring mounts are available for attaching light sources, articulating arms, straight posts, or any ¼-20 accessory to standard mounting hardware.


90° Angle Mount #39-355 features two ¾" thru holes at 90° with locking knobs. All Ring Mounts feature ¼-20 mounting hole, set screw for securing post, or optical component within the inner diameter. Swivel Arm #03-684 features a 0.75" diameter post which accepts rack and pinion focusing mount and allows swivel movement. Infinity Mounting Adapter #39-358 features male and female T-thread to replace 24mm tube section of infinity lens.

Technical Information

Stock No. A T O.D. I.D.
#54-263 0.375" 0.5" 2.5" 1.5"
#54-264 0.375" 0.5" 1.75" 0.75"
#54-265 0.271" 0.375" 1.25" 0.5"
