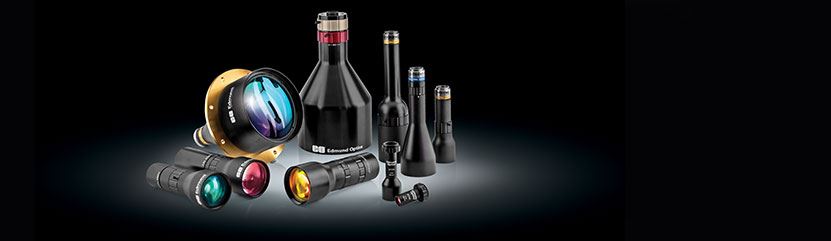

    Imaging Lenses

    Imaging Lenses are used to view objects in imaging systems. Imaging Lenses are imaging components used in imaging systems to focus an image of an examined object onto a camera sensor. Depending on the lens, Imaging Lenses can be used to remove parallax or perspective error or provide adjustable magnifications, field of views, or focal lengths. Imaging Lenses allow an object to be viewed in several ways to illustrate certain features or characteristics that may be desirable in certain applications.

    Edmund Optics offers a wide range of Imaging Lenses suited for many imaging needs. Several TECHSPEC® Imaging Lenses are available that offer unique imaging capabilities that are not capable with standard lenses, such as TECHSPEC® Telecentric Lenses for edge contrast imaging or TECHSPEC® SWIR Imaging Lenses, which have been optimized for use with shortwave infrared wavelengths. A large selection of Imaging Lens accessories is also available including mounts or adapters for additional functionality.

    TECHSPEC® Lenses | View All

    New
    ×

    Liquid Lens M12 Imaging Lenses
    • Integrated Liquid Lens for a Quick Autofocus Solution
    • High Light Throughput f/2.4 Designs
    • Compact M12 Mount
    New
    ×

    CA Series Fixed Focal Length Lenses
    • Compact APS (CA) Lens Ideal for Machine Vision
    • Supports 27.9mm APS-C Format Sensors
    • TFL Mount (M35 x 0.75, 17.5mm Flange) for Large Format Sensors

    Blue Series M12 Imaging Lenses
    • MegaPixel High Resolution Finite Conjugate Designs
    • Optimized for 1/3” and ½” Sensors with Small Pixels
    • Multiple f/# Options for Performance from 150mm to Infinity
    New
    ×

    Rugged Blue Series M12 Lenses
    • Ruggedized Versions of our Blue Series M12 Lenses
    • Ruggedized to Reduce Pixel Shift and Maintain Optical Pointing Stability
    • High Resolution Designs Optimized for Machine Vision Working Distances

    Green Series M12 Imaging Lenses
    • Finite Conjugate Designs
    • 6.0 to 25.0mm Focal Lengths
    • All Glass Multi-Element Designs

    Red Series M12 Imaging Lenses
    • High Resolution Infinite Conjugate Designs
    • Optimized for 1/3" and ½” Format Sensors
    • 400mm Minimum Working Distance

    HEO Series M12 Imaging Lenses
    • Harsh Environment Optics (HEO) Sealed Designs
    • Optimized for Infinite Conjugate Systems
    • Weatherproofed Housing

    C Series Fixed Focal Length Lenses
    • Compact (C) Form Factor
    • Industry Leading Price to Performance Ratio
    • Designed for True Factory Automation
    • Low Lens-to-Lens Variation

    Ci Series Fixed Focal Length Lenses
    • Compact Instrumentation (Ci) Versions of our C Series Lenses
    • Streamlined Designs for Instrumentation Integration
    • Wide Range of Fixed Aperture Options

    Cx Series Fixed Focal Length Lenses
    • Compact Flexible (Cx) Housing Design
    • Modular 3-Piece Versions of our C Series Lenses
    • Accommodates Interchangeable Accessories such as Liquid Lenses
    New
    ×

    Liquid Lens Cx Series Fixed Focal Length Lenses
    • Compact Flexible (Cx) C-Mount Designs
    • Integrated Liquid Lens for Quick Autofocus
    • Electronic Focus for Machine Vision Applications
    • Standalone Versions Without a Liquid Lens are Available

    Cr Series Fixed Focal Length Lenses
    • Compact Ruggedized (Cr) Versions of our C Series Lenses
    • Ruggedized to Minimize Pixel Shift After Shock and Vibration
    • Individual Optics Glued in Place to Maintain Optical Pointing Stability
    • 50G Shock Rating with Sub-Micron Pixel Shift of <1µm

    UC Series Fixed Focal Length Lenses
    • Ultra-Compact (UC) Form Factor
    • 4K Resolution Designed for Small Pixels (≤2.2μm)
    • Optimized for 1/2.5" Sensors and Supports up to 1/1.8"
    New
    ×

    UCi Series Fixed Focal Length Lenses
    • Ultra-Compact Instrumentation (UCi) Versions of our UC Series Fixed Focal Length Lenses
    • Optimized for 1/2.5” Sensors and Supports up to 1/1.8”
    • Streamlined Fixed Aperture Designs for Instrumentation Integration

    HP Series Fixed Focal Length Lenses
    • High Performance (HP) Design
    • Up to 9 MegaPixel Resolution Across the Field
    • Ruggedized Housing Ideal for Factory Automation
    New
    ×

    HPi Series Fixed Focal Length Lenses
    • High Performance Instrumentation (HPi) Versions of our HP Series Lenses
    • Up to 9 MegaPixel Resolution Across the Field
    • Streamlined Fixed Aperture Designs for Instrumentation Integration
    New
    ×

    HPr Series Fixed Focal Length Lenses
    • High Performance Ruggedized (HPr) Versions of our HP Series Lenses
    • Stability Ruggedized to Maintain Pointing Stability After Shock and Vibration
    • Individual Optics Glued in Place to Reduce Pixel Shift

    DG Series Fixed Focal Length Lenses
    • Double Gauss (DG) Design for Low Distortion, <0.3%
    • Supports Up to 4/3" Sensors
    • Low-Profile Static Housing for Machine Integration
    • Ideal for High Resolution Cameras

    LF Series Fixed Focal Length Lenses
    • Covers Large Format (LF) Sensors up to 43.3mm Diagonal
    • F-Mount Compatible
    • Compatible with 2k – 8k Line Scan Cameras and Mid-Sized Area Scan Arrays
    • Multiple Focal Length Options Available

    SWIR Series Fixed Focal Length Lenses
    • Designed, Coated, and Tested for SWIR Wavelengths
    • Compact, Lightweight, COTS Imaging Lenses
    • Low f/# for High Throughput

    C Series VIS-NIR Fixed Focal Length Lenses
    • Designed for True Factory Automation
    • Supports up to 2/3” Sensors
    • Large Maximum Aperture
    • Low Lens-to-Lens Variation

    Compact Objective Assemblies
    • Lightweight Design with Compact Form Factor
    • Configurable Magnification Using Spacers
    • Optimized For Long Working Distances

    CompactTL™ Telecentric Lenses
    • Ultra-Compact Design
    • Ideal for Volume Inspection Applications
    • Variety of Working Distance and Magnification Options

    SilverTL™ Telecentric Lenses
    • <0.1° Telecentricity
    • Double Sided Telecentric Designs
    • High Light Throughput f/6 Designs
    • Designed for ½” and 2/3” Sensor Formats

    GoldTL™ Telecentric Lenses
    • Focusable to Allow for Working Distance Adjustment
    • High Light Throughput f/6 Designs
    • Designed for ½” and 2/3” Sensor Formats
    • <0.2° Telecentricity

    PlatinumTL™ Telecentric Lenses
    • <0.1° Telecentricity
    • High Contrast at 72 lp/mm Across Full Sensor Field
    • High Light Throughput f/6 Designs
    • Double Sided Telecentric Design

    TitanTL™ Telecentric Lenses
    • Large Field of View Options up to 242mm
    • Sensor Formats: 1/1.8”, 2/3”, 1”, 4/3”, and 35mm
    • <0.1° Telecentricity

    VariMagTL™ Telecentric Lenses
    • Adjustable Field of View
    • Variable Iris to Control Light Throughput
    • Fixed Magnification, Telecentric, and Non-Telecentric Versions Available
    New
    ×

    MercuryTL™ Liquid Lens Telecentric Lenses
    • Integrated Liquid Lens for Quick Autofocus
    • Imaging Performance of a Telecentric with the Flexibility of a Liquid Lens
    • Telecentricity Maintained Throughout Working Distance Range

    MMS® Imaging Lenses
    • Available for Infinity Corrected Objectives
    • Designed for OEM Integration
    • Focusable with Adjustable Iris

    Fixed Focal Length Lenses | View All


    C Series Fixed Focal Length Lenses
    • Compact (C) Form Factor
    • Industry Leading Price to Performance Ratio
    • Designed for True Factory Automation
    • Low Lens-to-Lens Variation

    Ci Series Fixed Focal Length Lenses
    • Compact Instrumentation (Ci) Versions of our C Series Lenses
    • Streamlined Designs for Instrumentation Integration
    • Wide Range of Fixed Aperture Options
    New
    ×

    CA Series Fixed Focal Length Lenses
    • Compact APS (CA) Lens Ideal for Machine Vision
    • Supports 27.9mm APS-C Format Sensors
    • TFL Mount (M35 x 0.75, 17.5mm Flange) for Large Format Sensors

    Cx Series Fixed Focal Length Lenses
    • Compact Flexible (Cx) Housing Design
    • Modular 3-Piece Versions of our C Series Lenses
    • Accommodates Interchangeable Accessories such as Liquid Lenses
    New
    ×

    Liquid Lens Cx Series Fixed Focal Length Lenses
    • Compact Flexible (Cx) C-Mount Designs
    • Integrated Liquid Lens for Quick Autofocus
    • Electronic Focus for Machine Vision Applications
    • Standalone Versions Without a Liquid Lens are Available

    Cr Series Fixed Focal Length Lenses
    • Compact Ruggedized (Cr) Versions of our C Series Lenses
    • Ruggedized to Minimize Pixel Shift After Shock and Vibration
    • Individual Optics Glued in Place to Maintain Optical Pointing Stability
    • 50G Shock Rating with Sub-Micron Pixel Shift of <1µm

    UC Series Fixed Focal Length Lenses
    • Ultra-Compact (UC) Form Factor
    • 4K Resolution Designed for Small Pixels (≤2.2μm)
    • Optimized for 1/2.5" Sensors and Supports up to 1/1.8"
    New
    ×

    UCi Series Fixed Focal Length Lenses
    • Ultra-Compact Instrumentation (UCi) Versions of our UC Series Fixed Focal Length Lenses
    • Optimized for 1/2.5” Sensors and Supports up to 1/1.8”
    • Streamlined Fixed Aperture Designs for Instrumentation Integration

    HP Series Fixed Focal Length Lenses
    • High Performance (HP) Design
    • Up to 9 MegaPixel Resolution Across the Field
    • Ruggedized Housing Ideal for Factory Automation
    New
    ×

    HPi Series Fixed Focal Length Lenses
    • High Performance Instrumentation (HPi) Versions of our HP Series Lenses
    • Up to 9 MegaPixel Resolution Across the Field
    • Streamlined Fixed Aperture Designs for Instrumentation Integration
    New
    ×

    HPr Series Fixed Focal Length Lenses
    • High Performance Ruggedized (HPr) Versions of our HP Series Lenses
    • Stability Ruggedized to Maintain Pointing Stability After Shock and Vibration
    • Individual Optics Glued in Place to Reduce Pixel Shift

    DG Series Fixed Focal Length Lenses
    • Double Gauss (DG) Design for Low Distortion, <0.3%
    • Supports Up to 4/3" Sensors
    • Low-Profile Static Housing for Machine Integration
    • Ideal for High Resolution Cameras

    LF Series Fixed Focal Length Lenses
    • Covers Large Format (LF) Sensors up to 43.3mm Diagonal
    • F-Mount Compatible
    • Compatible with 2k – 8k Line Scan Cameras and Mid-Sized Area Scan Arrays
    • Multiple Focal Length Options Available

    C Series VIS-NIR Fixed Focal Length Lenses
    • Designed for True Factory Automation
    • Supports up to 2/3” Sensors
    • Large Maximum Aperture
    • Low Lens-to-Lens Variation

    SWIR Series Fixed Focal Length Lenses
    • Designed, Coated, and Tested for SWIR Wavelengths
    • Compact, Lightweight, COTS Imaging Lenses
    • Low f/# for High Throughput

    1" Format Fixed Focal Length Lenses
    • Ideal for Larger Camera Sensors, up to 1" Format
    • "Fast" Lenses for Increased Throughput
    • Excellent Performance From Center to Corner of the Field

    4/3" Format Fixed Focal Length Lenses
    • Ideal for Large Camera Sensors, up to 4/3" Format
    • C-Mount Compatible for a Wide Range of Cameras
    • Less than 1.0% TV Distortion

    43.2mm Large Format F-Mount Lenses
    • Ideal for Machine Vision Applications
    • Multiple Focal Length Options
    • Covers a 43.2mm Sensor Diagonal

    55mm FL Partially-Telecentric Imaging Lens
    • Telecentric Lenses Yield Constant Magnification over a Range of Working Distances
    • ±12.5mm of Object Movement Before 1% Error Image Scale Occurs
    • Additional Lens Converter Available

    Auto Iris Lenses
    • DC Auto Iris
    • Lockable, Manual Focus
    • Compact Size
    • Designed for CS-Mount Cameras

    Fisheye Imaging Lenses
    • Wide Field of View (185°)
    • Fixed Focus
    • C-Mount
    • Lockable Iris Control

    Fixed Focal Length Lenses
    • Lockable Manual Focus and Aperture Control
    • Working Distance from 250mm to Infinity
    • Compact Size

    HD P-Iris Lenses
    • High Resolution Design for 5 MegaPixel Imaging
    • P-Iris Stepper Motor Control for Repeatability
    • Covers Full 2/3” Sensors with Multiple Focal Length Options

    High Resolution Low Distortion Wide Angle Lenses
    • Working Distances from 100mm - ∞
    • Focal Lengths As Short As 3.5mm
    • High 120 lp/mm Resolution
    • Low Distortion <0.5%

    Low Cost Fixed Focal Length Lenses
    • Low Cost
    • Iris Option Available
    • Support ⅔" and ½" Sensors
    • CS and C-mount

    Low Distortion Wide Angle Lenses
    • Less than 3% and Less Than 1% Distortion Versions Available
    • 3 and 5 MegaPixel Resolution Options
    • No Refocusing from 100mm to Infinity
    • CS-Mount and C-Mount Options

    MegaPixel Fixed Focal Length Lenses
    • Lockable, Manual Focus and Aperture Control
    • Working Distance from 100mm to Infinity
    • Compact Size

    P-Iris Fixed Focal Length Lenses
    • Stepper Motor-Controller Iris for Dynamic and Repeatable Iris Adjustments
    • Ideal for Viewing Scenes with Changing Lighting Conditions
    • Reduced Diffraction Effects Compared to Standard Auto-Iris Lenses

    Rodagon Large Format Lenses
    • Supports Large Format Sensors
    • Several Camera Adapter Options Available
    • Ideal for Line Scan Cameras
    • Close Focus Distance

    Schneider Compact VIS-NIR Lenses
    • Supports Large Sensors Sizes (2/3" to 4/3" Sensor Formats)
    • Spectral Range of 400-1000nm
    • Compact Physical Size
    • Large Maximum Aperture

    Schneider Fast C-Mount Lenses
    • Helical Focus Movement
    • Click-Stop Free Iris Setting
    • External Iris and Focus Lock
    • Integrated Front Thread to Accept M35.5 x 0.5 Filters

    Schneider High Resolution Compact VIS-NIR Lenses
    • Optimized for High-Resolution, 4 and 5 MegaPixel CCD and CMOS Cameras
    • Spectral Range of 400-1000nm
    • Compact Size

    Schneider Large Format F-Mount Lenses
    • Optically Corrected for Visible to Infrared
    • Optimized for Close Up Images
    • Covers a 43.2mm Sensor Diagonal

    Schneider Macro Imaging Lenses
    • Ideal for Large Format Imaging Sensors
    • Designed for Close Up and Macro Imaging
    • Rugged Design for Factory Automation
    • Lenses are Reversible for Increased Range of Functionality

    SWIR Fixed Focal Length Lenses
    • Short Wave Infrared Lenses for 800 - 2000nm
    • Excellent for NIR and SWIR Applications
    • 6 Focal Length Options for Increased Versatility
    • Supports up to 1" Sensor Formats at f/1.4

    Ultra High Resolution Fixed Focal Length Lenses
    • 10 MegaPixel Resolution
    • Floating Focus for Performance from 100mm - ∞
    • High Transmission from the Visible to the NIR
    • Low Distortion to Speed Application Integration

    UV Fixed Focal Length Lenses
    • Transmission from 230 – 1200nm
    • Compact Size for Easy System Integration
    • Ideal for Use with Mounted Color Filters

    Telecentric Lenses | View All


    CompactTL™ Telecentric Lenses
    • Ultra-Compact Design
    • Ideal for Volume Inspection Applications
    • Variety of Working Distance and Magnification Options

    SilverTL™ Telecentric Lenses
    • <0.1° Telecentricity
    • Double Sided Telecentric Designs
    • High Light Throughput f/6 Designs
    • Designed for ½” and 2/3” Sensor Formats

    GoldTL™ Telecentric Lenses
    • Focusable to Allow for Working Distance Adjustment
    • High Light Throughput f/6 Designs
    • Designed for ½” and 2/3” Sensor Formats
    • <0.2° Telecentricity

    PlatinumTL™ Telecentric Lenses
    • <0.1° Telecentricity
    • High Contrast at 72 lp/mm Across Full Sensor Field
    • High Light Throughput f/6 Designs
    • Double Sided Telecentric Design

    TitanTL™ Telecentric Lenses
    • Large Field of View Options up to 242mm
    • Sensor Formats: 1/1.8”, 2/3”, 1”, 4/3”, and 35mm
    • <0.1° Telecentricity

    Hypercentric Lenses
    • Simultaneously Image Top and Sides of an Object
    • Can Be Used as Long Working Distance Borescopes
    • Ideal for Component Inspection

    VariMagTL™ Telecentric Lenses
    • Adjustable Field of View
    • Variable Iris to Control Light Throughput
    • Fixed Magnification, Telecentric, and Non-Telecentric Versions Available
    New
    ×

    MercuryTL™ Liquid Lens Telecentric Lenses
    • Integrated Liquid Lens for Quick Autofocus
    • Imaging Performance of a Telecentric with the Flexibility of a Liquid Lens
    • Telecentricity Maintained Throughout Working Distance Range

    55mm FL Partially-Telecentric Imaging Lens
    • Telecentric Lenses Yield Constant Magnification over a Range of Working Distances
    • ±12.5mm of Object Movement Before 1% Error Image Scale Occurs
    • Additional Lens Converter Available

    High Resolution In-Line Illumination C-Mount Telecentric Lenses
    • Designed for High Resolution Imaging
    • In-line Illumination Port (0.312" Ferrule)
    • 2/3" Max. Sensor Format

    In-Line Illumination C-Mount Telecentric Lenses
    • Fiber Optic Input for In-line Illumination
    • Long Working Distance
    • 2/3” Max Sensor Format

    Mitutoyo Telecentric Objectives
    • Long Working Distances Allow for Integration into Machine Vision Measurement Systems
    • Compact Design and Long Parfocal Length Simplifies Mounting
    • Tube Available for Use with C-Mount Cameras
    • Aluminum Alloy Housing

    Partially-Telecentric 7X Zoom Lens
    • Maintains Telecentricity from 0.25X - 0.5X
    • Variable Working Distance Range
    • Center to Corner Resolution >100 lp/mm

    Schneider Telecentric Lenses
    • Telecentric In Image and Object Space
    • Fine Focus Adjustment of ±3mm
    • Full Iris Control
    • 2/3" Max. Sensor Format

    Variable Magnification Telecentric Lens
    • 0.3X - 0.5X Magnification
    • 2/3” Maximum Sensor
    • Focus, Zoom and Iris Adjustment
    • Long Working Distance

    M12 Lenses (S-Mount Lenses) | View All

    New
    ×

    Liquid Lens M12 Imaging Lenses
    • Integrated Liquid Lens for a Quick Autofocus Solution
    • High Light Throughput f/2.4 Designs
    • Compact M12 Mount

    Blue Series M12 Imaging Lenses
    • MegaPixel High Resolution Finite Conjugate Designs
    • Optimized for 1/3” and ½” Sensors with Small Pixels
    • Multiple f/# Options for Performance from 150mm to Infinity
    New
    ×

    Rugged Blue Series M12 Lenses
    • Ruggedized Versions of our Blue Series M12 Lenses
    • Ruggedized to Reduce Pixel Shift and Maintain Optical Pointing Stability
    • High Resolution Designs Optimized for Machine Vision Working Distances

    Red Series M12 Imaging Lenses
    • High Resolution Infinite Conjugate Designs
    • Optimized for 1/3" and ½” Format Sensors
    • 400mm Minimum Working Distance

    Green Series M12 Imaging Lenses
    • Finite Conjugate Designs
    • 6.0 to 25.0mm Focal Lengths
    • All Glass Multi-Element Designs

    HEO Series M12 Imaging Lenses
    • Harsh Environment Optics (HEO) Sealed Designs
    • Optimized for Infinite Conjugate Systems
    • Weatherproofed Housing

    Infinite Conjugate Imaging Lenses
    • 1.68 to 50.0mm Focal Length
    • Multi-Element Design
    • Large Field Coverage
    New
    ×

    UCi Series Fixed Focal Length Lenses
    • Ultra-Compact Instrumentation (UCi) Versions of our UC Series Fixed Focal Length Lenses
    • Optimized for 1/2.5” Sensors and Supports up to 1/1.8”
    • Streamlined Fixed Aperture Designs for Instrumentation Integration

    Fixed Magnification Lenses | View All


    Compact Objective Assemblies
    • Lightweight Design with Compact Form Factor
    • Configurable Magnification Using Spacers
    • Optimized For Long Working Distances

    ReflX™ Objectives
    • Industry Leading 24 to 31mm Working Distance
    • EO Designed and Manufactured for Focusing or Imaging Applications
    • Actively Aligned for Optimal Performance
    • Ultra-Wide Spectral Band from 190nm to 11μm with No Chromatic Aberration

    High Performance ReflX™ Objectives
    • Diffraction Limited Performance: Transmitted Wavefront, RMS: λ/14
    • Streamlined Tapered Design for Added Clearance at 45° AOI
    • Curved Spider Legs to Reduce Diffraction Effects
    • Industry Leading 24 to 31mm Working Distance
    Clearance
    ×

    Adjustable ReflX™ Objectives
    • Units Adjustable for Precision Alignment
    • Various Coating Options Available for Specific Wavelength Ranges
    • Finite Conjugate Design and RMS Threading Integrate Easily in Many Objective Setups

    C-Mount Microscopes
    • Simple C-Mount Connection to Infinity Corrected Objectives
    • Compact Design for Simple Integration Into Systems
    • 2/3” Max Sensor Size
    • 14mm In-line Illumination Port
    • M26 x 0.706 Objective Threading

    EO High Resolution Infinity Corrected Objectives
    • High Resolving Power
    • Long Working Distance
    • Compatible with Mitutoyo Microscopes and Accessories

    InfiniFlex™ HD Compact Lenses
    • Multiple Options Available by Combining Main Bodies and Amplifiers
    • High Light Throughput and Resolution with 0.13 NA
    • Standardized 20mm Working Distance

    InfiniStix™ Imaging Lenses
    • Fixed Magnification Lenses Available with a Variety of Working Distance Options
    • Primary Magnifications Range From 8X (with DL Doubler) to 0.5X
    • Use DL Doubler Tube to Give Twice the Stated Magnification

    InfiniTube™ FM Systems
    • Direct to Video C-Mount for ½" and Smaller Sensor Cameras
    • Internal Focusing

    InfiniTube™ Standard Systems

    Infinity Achrovid™ Microscope Objectives
    • Video-dedicated Microscope Objectives
    • 37mm Working Distances
    • Designed for Use in Conjunction with Other Infinity Products

    InFocus™ Dynamic Optical Focusing Systems
    • Enable Dynamic Optical Focusing and Reduce Spherical Aberration
    • Compatible With All Infinity Corrected Objectives
    • Color Matched for Major Brand Objectives

    Mitutoyo Infinity Corrected Long Working Distance Objectives
    • Long Working Distances
    • Bright Field Inspection
    • High Quality Plan Apochromat Design
    • Flat Image Surface over Entire Field of View

    Nikon CFI60 Infinity Corrected Brightfield Objectives
    • Excellent Color Reproduction
    • Long Working Distance and High NA
    • High Contrast with Minimal Flare
    • Strain Free

    Zoom Lenses | View All


    Auto Iris Lenses
    • DC Auto Iris
    • Lockable, Manual Focus
    • Compact Size
    • Designed for CS-Mount Cameras

    Close Focus Zoom Lenses
    • Large Zoom
    • Close Focus Capability
    • Broad Field of View Range

    Dynamic Focus VZM™ Lens
    • Electronically Adjust Focus with Integrated Liquid Lens
    • Allows Magnification Adjustment without changing Working Distance
    • Overcomes Depth of Field Limitations

    EO Precision Zoom Lenses
    • Robust Housing with Incremental Zoom Control
    • Coaxial In-Line Illumination Option with ¼” Fiber Port
    • High Resolution Optical Design

    High Resolution Macro Zoom Lenses
    • Full Zoom, Focus and Iris Control Options
    • Up to 100 lp/mm Resolution
    • Working Distances from 300mm - ∞

    High Resolution Varifocal Lenses
    • Low Distortion and Day/Night Options
    • Focal Lengths from 3.5mm - 90mm
    • C- and CS-Mount Versions

    InfiniProbe™ Microscopes
    • Available in Standard and Right Angle Versions
    • Focuses From Infinity to 32, 28, and 18mm Respectively
    • Max. Sensor Format 2/3"
    • Magnification From 2.5X to 8.0X
    • Direct Video C-Mount Coupling

    Infiniprobe™ UV Microscopes
    • Available in Standard and Right Angle Versions
    • Magnification Range from 0X to 8.0X
    • Max. 2/3" Sensor Format
    • Direct Video C-Mount Coupling
    • No Adapters Required

    Infinity K2/DistaMax™ Long Distance Video Microscopes
    • Multiple Configurations for Video/Photo/Visual Applications
    • 3X Greater Magnification than Other Coaxial In-line Systems
    • Highest Possible Long-Distance Resolution
    • Focus from Infinity to 55mm
    • Supplementary Focuser Available for CentriTel™ Capabilities

    Macro Zoom Lens
    • 3.3:1 Zoom Ratio
    • Compact Design
    • Lockable Manual Zoom, Focus, and Aperture Control

    Manual Zoom Imaging Lenses
    • Manual Zoom, Focus and Iris Control
    • Features Locking Set Screws
    • C-Mount

    Partially-Telecentric 7X Zoom Lens
    • Maintains Telecentricity from 0.25X - 0.5X
    • Variable Working Distance Range
    • Center to Corner Resolution >100 lp/mm

    Varifocal Imaging Lenses
    • Large Field of View
    • C and CS-Mount Lenses

    VZM™ Zoom Imaging Lenses
    • Designed to Accomodate up to 2/3" Sensor Size Formats
    • Dependable, Versatile Performance in Compact Designs
    • Analog and Digital Imaging Systems Available

    Modular Zoom Lenses | View All


    12.5X Precision Zoom Lens
    • Compatible with Nikon and Mitutoyo Objectives
    • High Resolution (FOV range from 0.24 to 45.3mm)
    • Optional Reticle Projection Attachment

    16X Precision Zoom Lens
    • 16:1 Zoom Ratio
    • High Resolution and Depth of Field
    • Adjustable Iris
    • Compatible with Mitutoyo Objectives

    7X and 12.5X High Precision Zoom Lenses
    • Can Achieve Wide Range of Magnifications
    • Standard Swappable Components Provide Maximum Flexibility
    • Motorized and Inline Options are Available

    7X Precision Zoom Lenses
    • New Motorized Versions Available
    • Compatible with Mitutoyo Objectives
    • 7:1 Zoom Ratio

    Variable Magnification Lenses | View All


    InfiniGage™ C-Mount Imaging Lenses
    • Accurate Measurements Based on Field of View
    • 7 Spacer Options for a Wide Range of Magnifications
    • UV Option Available

    InfiniMite™ Imaging Lenses
    • 3 Primary Magnification Range Options
    • Working Distance from 25mm to Infinity
    • Optional LDL Doubler Tube Boosts Magnification 2X

    InfiniProbe™ Microscopes
    • Available in Standard and Right Angle Versions
    • Focuses From Infinity to 32, 28, and 18mm Respectively
    • Max. Sensor Format 2/3"
    • Magnification From 2.5X to 8.0X
    • Direct Video C-Mount Coupling

    InfiniProbe™ MS Variable Magnification Lens
    • 0 – 4X Range Focusing from ∞ to 16mm
    • C-Mount and Covers Up to 1" Sensor Format
    • High Resolution with Low Distortion
    • Same Great Capabilities as the InfiniProbe TS-160 Macro

    InfiniProbe™ TS-160 Universal Macro/Micro System
    • High Resolution Design for up to 35mm Sensors
    • 0X – 4X Macro and 4X – 16X Micro Configurations
    • Internally Focuses from 18mm to Infinity

    Infiniprobe™ UV Microscopes
    • Available in Standard and Right Angle Versions
    • Magnification Range from 0X to 8.0X
    • Max. 2/3" Sensor Format
    • Direct Video C-Mount Coupling
    • No Adapters Required

    Infinity K2/DistaMax™ Long Distance Video Microscopes
    • Multiple Configurations for Video/Photo/Visual Applications
    • 3X Greater Magnification than Other Coaxial In-line Systems
    • Highest Possible Long-Distance Resolution
    • Focus from Infinity to 55mm
    • Supplementary Focuser Available for CentriTel™ Capabilities

    K1 CentriMax™ Long Distance CentriTel® Video Microscope
    • CentriTel® Internal Focusing System for Constant Magnification
    • Focuses from 590mm to 60mm with MX-Series Objectives
    • Can be Equipped with Infinity-corrected Microscope Objectives
    • Coaxial In-line Illuminator (Optional) for Reflective Objects

    KC VideoMax™ Long Distance Microscope
    • New Motorized Version Available
    • Telephoto, Macroscope or Microscope Capability
    • Focuses from Infinity to 63mm

    KX InfiniMax™ Long Distance Microscope
    • New Motorized Version Available
    • Manual Iris
    • Objective Options Giving PMAG 0.58X – 2.9X
    • Clamp offers ¼-20 mounting hole
    • Optional LDL Tubes Double Magnification

    MMS® Imaging Lenses
    • Available for Infinity Corrected Objectives
    • Designed for OEM Integration
    • Focusable with Adjustable Iris

    VariMagTL™ Telecentric Lenses
    • Adjustable Field of View
    • Variable Iris to Control Light Throughput
    • Fixed Magnification, Telecentric, and Non-Telecentric Versions Available

    Imaging Filters | View All


    Additive and Subtractive Dichroic Color Filters
    • High Saturation Dichroic Type
    • Matrix of Sizes and Sets
    • Precision Glass Substrate

    Colored Glass Bandpass Filters
    • UV, VIS, IR Ranges
    • Circular and Square Sizes Available

    Continuously Variable Apodizing Filters
    • Bull’s Eye Filter Type Decreases Radially from Center
    • Reverse Bull’s Eye Type Increases Radially from Center
    • Ideal for Eliminating Intensity Variations in Optical Systems

    Empty Filter Mounts
    • Ideal for Attaching Filters to Imaging Lenses
    • Common Mounting Threads

    Filter Adapter Rings
    • Used to Attach Filters or Accessories to a Lens
    • Step Up and Step Down Options
    • Utilize Step Up Rings When Lens Filter Size is Smaller than Adapting Filter

    Filter Holders For Imaging Lenses
    • Holds 2" Circle or Square Filters
    • Provides Male M52 x 0.75 Filter Thread Interface
    • Step Down Adapter Options for Other Common Filter Thread

    Imaging Filter Kit
    • Variety of M25.5 Mounted Filters
    • Ideal Accessory for Labs or Factories Utilizing our TECHSPEC® C Series Fixed Focal Length Lenses
    • Includes IR, Color, Polarizing, ND, and Protective Filters

    IR Cut-Off Filters
    • 710nm Cut-Off Wavelength
    • Circular and Rectangular Options
    • Various Sizes Available

    M25.5 and M30.5 Mounted Edge Filters
    • TECHSPEC® Longpass and Shortpass Filters, Mounted for Imaging Lenses
    • Variety of Transmission Bands
    • Stack Shortpass and Longpass Filters Together to Create Custom Bandpass Filters

    M25.5 and M30.5 Mounted Neutral Density Filters
    • VIS and NIR ND Filters, Mounted for Imaging Lenses
    • Variety of Optical Densities
    • Stack Filters Together for Custom Transmission Profiles

    M25.5 and M30.5 Mounts for 25mm Diameter Filters

    Machine Vision Filters
    • Optimized for Use with Popular LEDs
    • Multiple Mounting Sizes and Threads Available to Ease System Compatibility
    • Extremely High and Flat Transmission Profiles Provide Even Illumination
    New
    ×

    Machine Vision Filter Kits
    • 9 Machine Vision Filters with M25.5 or M30.5 Threading
    • Center Wavelengths from 330nm to 880nm
    • High Transmission Up to 96%
    • Individual Machine Vision Filters also Available

    Mounted Absorptive Neutral Density (ND) Filters
    • Spectrally Flat from 400-700nm
    • Homogeneous Glass: Blocks by Absorption
    • Light/Exposure Control for Imaging

    Mounted Color Filters
    • Improve Contrast
    • Isolate Spectral Regions/Colors
    • Precision Colored Glass

    Mounted Infrared (IR) Filters
    • Pass Only Visible Light or Only IR
    • IR-Cut are Ideal for Use As Heat-Absorbing Filters

    Mounted Linear Glass Polarizing Filters
    • Stackable, Rotating Mount for Easy Integration into Imaging Systems
    • Eliminate Hot Spots and Reduce Glare
    • 95% Polarization Efficiency
    • Also Available Unmounted

    Mounted UV Filters
    • Blocks UV and Transmits Visible
    • Ideal as Dust or Protective Covers for Camera Sensors

    Relay Lenses | View All


    C-Mount Achromatic Pairs
    • C-Mount Designs for Easy Integration into Imaging Applications
    • Feature Integrated Iris for Increased Control of Light Throughput
    • Ideal for Relay or Projection Applications

    Mounted Achromatic Lens Pairs
    • 15mm and 30mm Diameter Options
    • AR Coated Lenses
    • Mounted Achromatic Pairs Kits Available

    Mounted Near-IR (NIR) Achromatic Lens Pairs
    • 30mm Diameter Package Designed for NIR Applications
    • Optimized for Various Magnification Ratios
    • Ideal for Integration into OEM Applications
    • NIR II Coated for 750-1550nm

    Relay Lenses
    • Optimized for 1:1 Imaging
    • f/4 and f/8 Versions Available

    Specific Microscope Video Relay Lenses
    • Video Adaptability for Most Microscopes
    • Offer High Resolution and Precise Focusing
    • Permit Variety of Magnifications
    • Interchangeable—Share Video Cameras and Coupler with Many Different Microscopes

    Steinheil Triplet Achromatic Lenses

    Imaging Lens Accessories | View All


    Stray Light Reduction Lens Hood
    • Eliminate Or Reduce Stray Light
    • Compact Storage

    M12 Imaging Lens Accessories
    • M12 Lens to C-Mount Lens Adapter with or without O-Ring
    • Lock Nut to Secure M12 Lenses to Most Holders
    • Durable Holder for Camera Boards

    Right Angle Adapters for Imaging Lenses
    • Compatible with Filter Threads from M25.5 to M46
    • Prism Faces are AR Coated While Side Faces are Ground and Blackened

    Telecentric Lens Accessories
    • Mirror or Prism Option Permit Imaging at 90 Degrees from Normal
    • Easily Attaches to the Front of Most EO Telecentrics
    • Decreases System Length by Changing Path Direction
    • Available with Prism, Mirror, or Beamsplitter for a Variety of Applications

    ×

    Need a Quote?

    Edmund Optics Facebook Edmund Optics Twitter Edmund Optics YouTube Edmund Optics LinkedIn Edmund Optics Instagram



    ×
