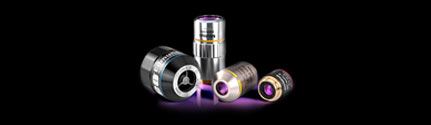

    Fixed Magnification Lenses

    Fixed Magnification Lenses are used to provide a fixed degree of magnification for imaging applications such as factory inspection or microscopy. Fixed Magnification Lenses are imaging lenses that feature fixed image magnifications. Fixed Magnification Lenses allow small or unclear objects to easily be viewed. Fixed Magnification Lenses are simple, easy-to-use options for imaging applications that do not require multiple image magnifications.

    Edmund Optics offers a wide range of Fixed Magnification Lenses suited for many imaging needs, including a range of fixed magnification microscope objectives. Many Fixed Magnification Lenses feature longer working distances than many other imaging lenses, providing additional versatility when examining specific objects. Fixed Magnification Lenses are ideal for many general imaging needs or in applications that do not require multiple magnifications. Without the need for additional adjustment, these lenses ease system implementation or setup. A wide selection of magnifications is available to fit any number of imaging or image magnification needs.

    Compact Objective Assemblies
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    Compact Objective Assemblies
    • Lightweight Design with Compact Form Factor
    • Configurable Magnification Using Spacers
    • Optimized For Long Working Distances
    ReflX™ Objectives
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    ReflX™ Objectives
    • Industry Leading 19 to 31mm Working Distance
    • EO Designed and Manufactured for Focusing or Imaging Applications
    • Actively Aligned for Optimal Performance
    • Ultra-Wide Spectral Band from 190nm to 11μm with No Chromatic Aberration
    High Performance ReflX™ Objectives
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

    High Performance ReflX™ Objectives
    • Diffraction Limited Performance: Transmitted Wavefront, RMS: λ/14
    • Streamlined Tapered Design for Added Clearance at 45° AOI
    • Curved Spider Legs to Reduce Diffraction Effects
    • Industry Leading 24 to 31mm Working Distance
    Adjustable ReflX™ Objectives
    TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
    Clearance
    ×

    Adjustable ReflX™ Objectives
    • Units Adjustable for Precision Alignment
    • Various Coating Options Available for Specific Wavelength Ranges
    • Finite Conjugate Design and RMS Threading Integrate Easily in Many Objective Setups
    C-Mount Microscopes
    C-Mount Microscopes
    • Simple C-Mount Connection to Infinity Corrected Objectives
    • Compact Design for Simple Integration Into Systems
    • 2/3” Max Sensor Size
    • 14mm In-line Illumination Port
    • M26 x 0.706 Objective Threading
    EO High Resolution Infinity Corrected Objectives
    EO High Resolution Infinity Corrected Objectives
    • High Resolving Power
    • Long Working Distance
    • Compatible with Mitutoyo Microscopes and Accessories
    InfiniFlex™ HD Compact Lenses
    InfiniFlex™ HD Compact Lenses
    • Multiple Options Available by Combining Main Bodies and Amplifiers
    • High Light Throughput and Resolution with 0.13 NA
    • Standardized 20mm Working Distance
    InfiniStix™ Imaging Lenses
    InfiniStix™ Imaging Lenses
    • Fixed Magnification Lenses Available with a Variety of Working Distance Options
    • Primary Magnifications Range From 8X (with DL Doubler) to 0.5X
    • Use DL Doubler Tube to Give Twice the Stated Magnification
    InfiniTube™ FM Systems
    InfiniTube™ FM Systems
    • Direct to Video C-Mount for ½" and Smaller Sensor Cameras
    • Internal Focusing
    InfiniTube™ Standard Systems
    InfiniTube™ Standard Systems
    Infinity Achrovid™ Microscope Objectives
    Infinity Achrovid™ Microscope Objectives
    • Video-dedicated Microscope Objectives
    • 37mm Working Distances
    • Designed for Use in Conjunction with Other Infinity Products
    InFocus™ Dynamic Optical Focusing Systems
    InFocus™ Dynamic Optical Focusing Systems
    • Enable Dynamic Optical Focusing and Reduce Spherical Aberration
    • Compatible With All Infinity Corrected Objectives
    • Color Matched for Major Brand Objectives
    Mitutoyo Infinity Corrected Long Working Distance Objectives
    Mitutoyo Infinity Corrected Long Working Distance Objectives
    • Long Working Distances
    • Bright Field Inspection
    • High Quality Plan Apochromat Design
    • Flat Image Surface over Entire Field of View
    Nikon CFI60 Infinity Corrected Brightfield Objectives
    Nikon CFI60 Infinity Corrected Brightfield Objectives
    • Excellent Color Reproduction
    • Long Working Distance and High NA
    • High Contrast with Minimal Flare
    • Strain Free

    ×
