Overview

The Edmund Optics® diamond turning facility is staffed with experts with 10+ years of experience in diamond turning a variety of materials utilizing various techniques including, but not limited to, standard turning, fly cutting, and post polishing nickel.

Single point diamond turning is a manufacturing technique for producing precision optical components including off-axis parabolic (OAP) mirrors, off-axis elliptical (OAE) mirrors, spherical and aspheric lenses, and flatwork. Edmund Optics® offers build-to-print or custom capabilities to meet your specific application needs and diamond turns components out of metals, crystalline materials, and plastics. Whether standard or custom, our expert optical design and diamond turning staff can develop customized solutions incorporating custom sizes and shapes, a variety of metal mirror coatings, or other modifications.
Contact us today to speak with an expert or receive an expedited quote.



Diamond Turning Capabilities
  Commercial Precision High Precision
Reflected Wavefront Error (P - V @ 632nm) λ λ/2 λ/8
Surface Quality 80-50 60-40 40-20
Surface Roughness (RMS) Metals*
  150Å 100Å <30Å

*Exact values are dependent on the specific materal and size

Surface Roughness (RMS): Crystalline Materials and Plastics
Diameter: 1/4" - 8" <50Å
Additional Diamond Turning Specifications
Geometries Off-Axis Parabolas, Off-Axis Ellipses, Spherical Surfaces, Aspheric Surfaces, and Planar Surfaces
Angles 0 - 90°
Diameter (Off-Axis):
Diameter (On-Axis):
2 - 254mm
8 - 254mm
Coatings Uncoated, Aluminum, UV Enhanced Aluminum, Protected Gold, Bare Gold, Protected Silver, Anti-Reflection, and Custom (upon request)
Materials Metals (Aluminum, Copper, Brass, and Nickel-Plated Surfaces), Crystalline Materials (Germanium, Silicon, Calcium Fluoride, and Zinc Selenide), and Plastic (Acrylic and Zeonex)

Build-to-Print Manufacturing

Edmund Optics has build-to-print manufacturing capabilities and can diamond turn off-axis parabolic mirrors, off-axis elliptical mirrors, and other precision metal optical components to meet your exact specifications. Our diamond turning staff are experienced at optimizing designs for manufacturability and cost reduction.

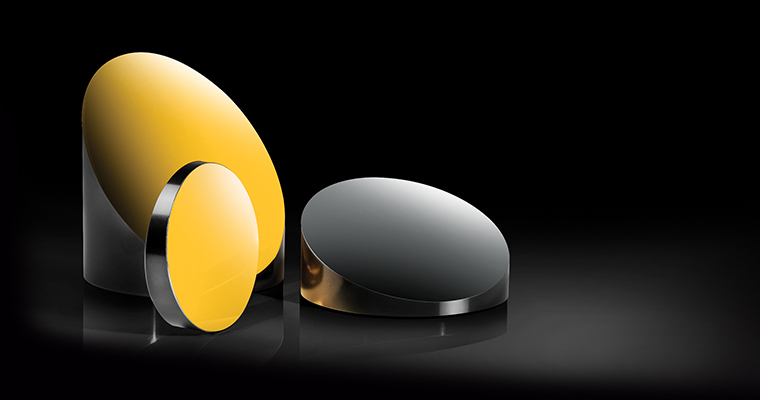

OAP
Diamond Turning

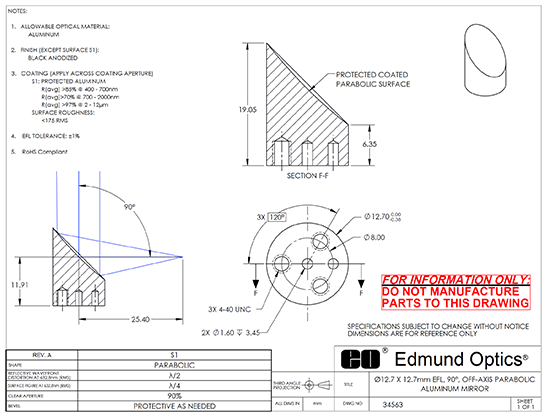

Figure 1: Build-to-Print Capabilities Available

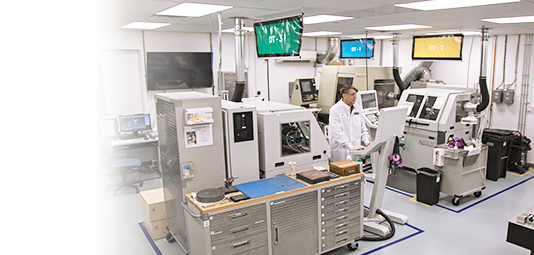

Manufacturing Equipment

  • Moore Nanotech® Multi-Axis UPL Diamond Turning Machines

Metrology

Learning Resources

Application Notes

Technical information and application examples including theoretical explanations, equations, graphical illustrations, and much more.

Metallic Mirror Coatings
Read

Off-Axis Parabolic Mirror Selection Guide
Read

Roughness of Off-Axis Parabolic Mirrors
Read

Understanding Optical Specifications
Read
