Ion Beam
Sputtered Coatings


 Reflectivities >99.99%

 Coatings That Are Less Affected by Environmental Factors, Including Temperature and Humidity

 Surface Roughness No Longer Limited by Coating

 Coatings Covering Wavelengths Between 266-1600nm

 Group Delay Dispersion (GDD) Control for Ultrafast Coatings

Overview

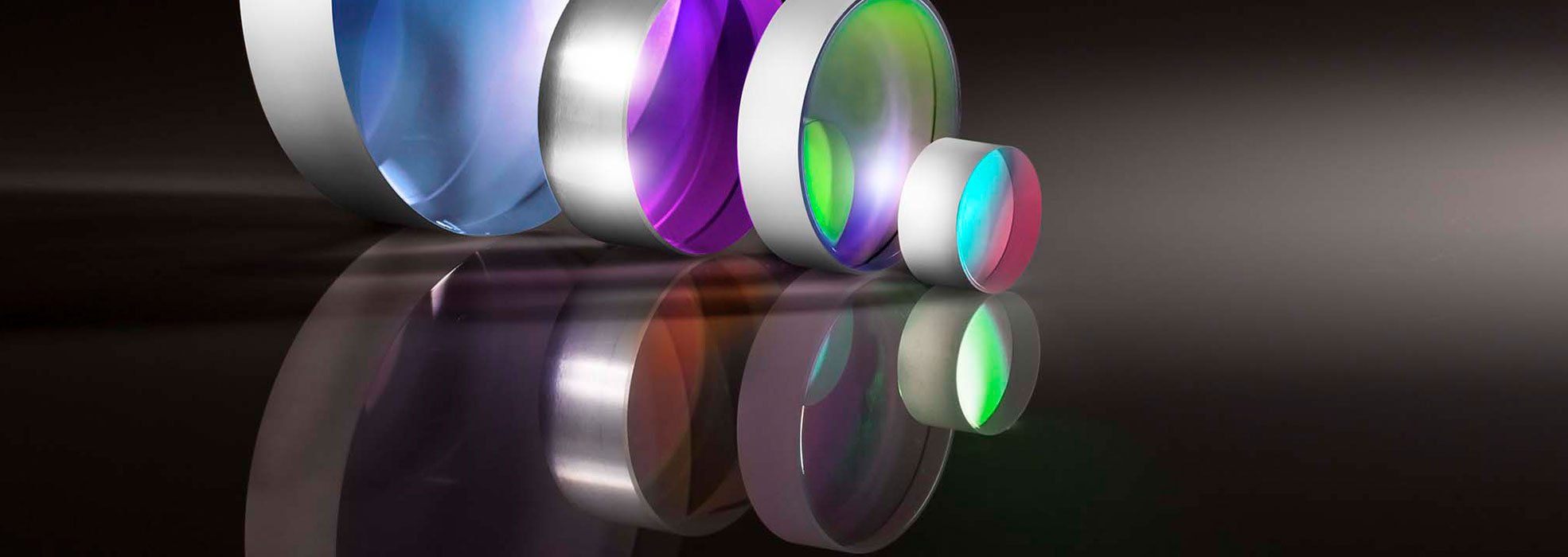

Edmund Optics® designs and manufactures optical coatings deposited using ion beam sputtering (IBS), a highly-repeatable coating technology ideal for high-reflectivity mirrors, ultrafast mirrors, and filters with sharp transitions.

Measuring High Reflectivity IBS Coatings Using Cavity Ring-Down (CRD) Loss Meters

  • State-of-the-Art Metrology for Highly-Reflective Optical Components
  • Highly-Sensitive Measurement of Total Loss in the Parts per Million
  • Signal Decay Rate Measured in Cavity Consisting of Test Optic and Reference Mirror
CRD loss meters produce a highly-sensitive loss measurement of signal decay rate, quantifying a component’s transmission, absorption, and scatter
Figure 1: CRD loss meters produce a highly-sensitive loss measurement of signal decay rate, quantifying a component’s transmission, absorption, and scatter.
Loss measurements made using CRD are much more accurate for highly-reflective optics than direct transmission or reflection measurements made using a spectrophotometer
Figure 2: Loss measurements made using CRD are much more accurate for highly-reflective optics than direct transmission or reflection measurements made using a spectrophotometer.

High Laser Induced Damage Threshold (LIDT)

IBS coatings are ideal for laser optics applications due to their high laser induced damage threshold.

Wavelength Typical LIDT
355nm 10 J/cm2 @ 20ns, 10Hz
532nm 25 J/cm2 @ 20ns, 10Hz
1064nm 30 J/cm2 @ 20ns, 10Hz
Table 1: Due to continuous process improvement, these typical LIDT values will continue to improve over time.

Ultrafast IBS Coatings

  • Coating Layers Designed for Either Near-Zero or High Negative Group Delay Dispersion (GDD)
  • Minimize or Compensate for the High Dispersion Prevalent in Ultrafast Laser Systems
  • Short Pulse Durations of Ultrafast Lasers Beneficial for a Wide Range of Applications
  • White Light Interferometry Used to Accurately Measure GDD

Superpolished Substrates for IBS Optics

  • RMS Surface Roughness <1Å for Minimized Scatter
  • Diameters up to 50mm on Fused Silica
  • Complement IBS Coatings for Creating Extremely Low Loss Optics

Custom Designed & Manufactured IBS Optics

  • For wavelengths between 266-1600nm
  • Let us know specifications needed for your application
Speak to an Expert

Learn More About EO Coatings

  • More coating capabilities in our global manufacturing facilities
  • Hundreds of stock and custom coating options
Learn More

Technical Resources

Videos

Informative corporate or instructional videos ranging from simple tips to application-based demonstrations of product advantages.

Laser Optics Lab: Coatings

Laser Optics Lab: Coatings


Metrology at Edmund Optics: Measuring as a Key Component of Manufacturing

Metrology at Edmund Optics: Measuring as a Key Component of Manufacturing



Application Notes

Technical information and application examples including theoretical explanations, equations, graphical illustrations, and much more.

An Introduction to Optical Coatings
Read

Highly Reflective Coatings
Read

Laser Damage Threshold Testing
Read

LIDT for Ultrafast Lasers
Read

The Complexities of High-Power Optical Coatings
Read

Uncertainty in LIDT Specifications
Read

Understanding and Specifying LIDT of Laser Components
Read

Trending Topics

The future depends on optics through technological and application advancements. Edmund Optics® continues to embrace the future by providing information on trending products and technologies.

High Reflectivity Mirrors for Laser Applications
Learn More

Reflective Optics for Laser Applications
Learn More

Ultrafast Highly-Dispersive Mirrors
Learn More

Technical Tools

Technical calculators based on commonly used and referenced equations in the Optics, Imaging and Photonics industries.

Laser Induced Damage Threshold Scaling Calculator
Learn More

Webinars

Register to view past and upcoming webinar recordings on a wide variety of optics and imaging topics.

High Reflectivity Mirrors for Laser Systems
Watch

Ultrafast Optics: Challenges and Solutions
Watch
