BBAR Coated Hypotenuse Right Angle Prisms

Broadband Anti-Reflection Coated Hypotenuse Prism

Single Axis Retroreflector
Right-Handed Image
VIS and NIR Options Available

TECHSPEC® BBAR (Broadband Anti-Reflection) Coated Hypotenuse Right Angle Prisms are ideal for applications that require a single axis retroreflector. These prisms feature coating options that cover the visible and near-infrared spectrum, as well as tight angular tolerances. These TECHSPEC® BBAR Coated Hypotenuse Right Angle Prisms are also available in custom sizes.

BBAR Coated Hypotenuse Right Angle Prisms

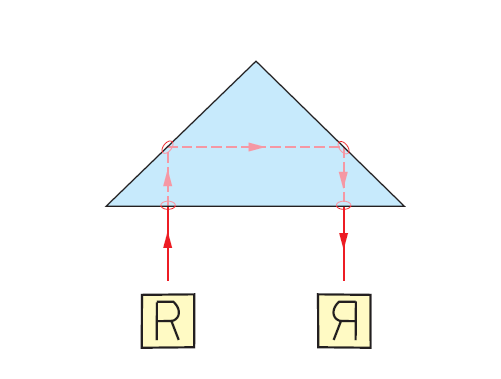

Right Angle Prism Ray Path

Right Angle Prism Ray Path

Right Angle Prism Tunnel Diagram

Right Angle Prism Tunnel Diagram
