TECHSPEC® DG Series Fixed Focal Length Lenses utilize a Double Gauss design to provide high-performance, low distortion, compact size, and exceptional value, while exceeding the performance of typically available fixed focal length lenses. These lenses feature a mechanical design that allows the focusing movement to be motorized by the user, yields image resolution greater than 100 lp/mm, and have a standard C-Mount. For most applications, the camera-lens combination can be attached to workstations using the ¼-20 mount provided on the camera. TECHSPEC® DG Series Fixed Focal Length Lenses include focus ring, manual iris, and set screws to facilitate a low profile integration in machine vision applications. Typical applications for the DG Series lenses include machine vision, assembly-line integration, and measurement and image analysis.
Note: Industrial Boom Stands are recommended for building vibration-free workstations.
|FL (mm)||A (mm)||B (mm)||C (mm)||D (mm)||E (mm)||F (mm)||
(Dia. x Pitch)

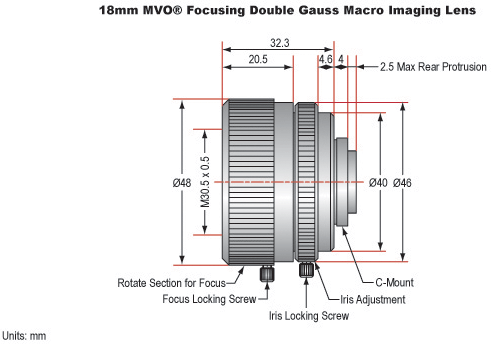

|18||48.0||32.3||4.6||40.0||-||2.5||M30.5 x 0.5|
|25||39.0||40.0||5.8||34.7||30.7||2.2||M30.5 x 0.5|

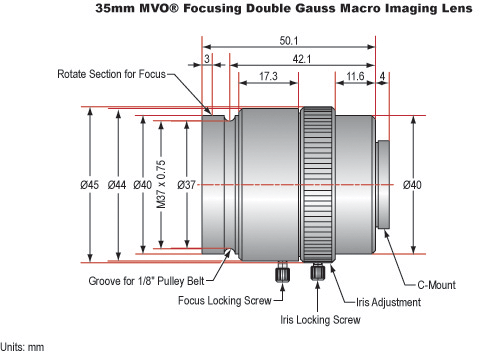

|35||45.0||50.1||11.6||40.0||42.1||0||M37.0 x 0.75|

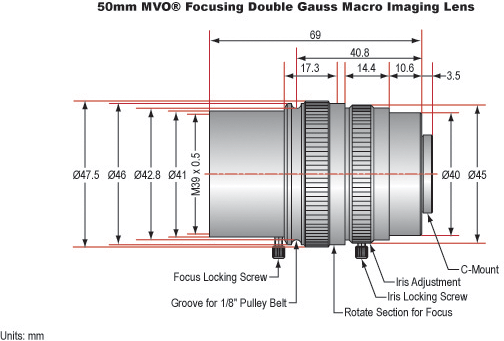

|50||47.5||69.0||10.6||40.0||40.8||0||M39.0 x 0.5|

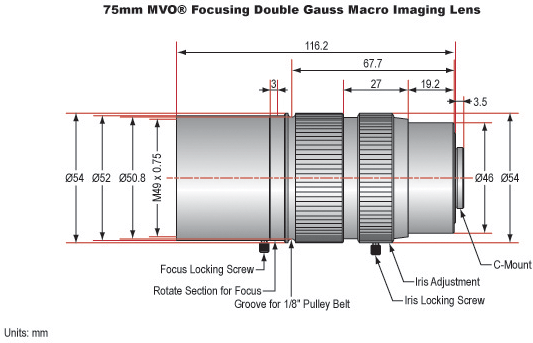

|75||54.0||116.2||19.2||46.0||67.7||0||M49.0 x 0.75|
