InfiniMite™ Imaging Lenses

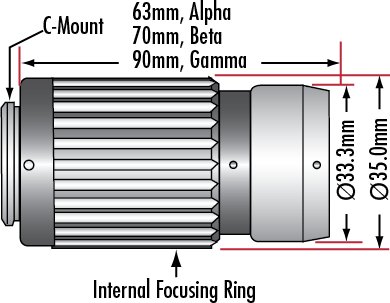

The InfiniMite™ macro lens is available in 3 lens power ranges. The standard version uses integral focus-lock as a friction break to lock the magnification/focus setting in place. Designed with input from specialists in the field, its miniature size allows the InfiniMite™ to be integrated into a wide variety of electronic imaging conditions. The length of the lens does not change when focusing.

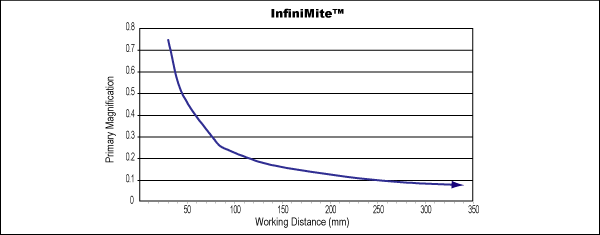

InfiniMite™ was designed to provide specific working distance and field of view combinations when using 1/3" format sensors, but the lens can be used with sensors up to 2/3" format. The main lens, the Alpha, covers a 0.75- 0.08X range for macro use, whereas the Beta and Gamma versions offer a working distance (WD) shift from the high-magnification end of the Alpha. For example, with a ½" sensor the Alpha gives a ½" field of view (FOV) at 40mm WD at 0.5X Lens magnification (PM); at the same PM & FOV, the Beta has a 60mm WD and the Gamma has a 122mm WD. The three lens options offer unprecedented flexibility in system integration.

Technical Information
