MegaPixel Fixed Focal Length Lenses

Up to 2/3", C-Mount Lens
Ideal for Machine Vision at an Economical Price
5mm to 75mm Focal Length

Designed for high resolution, our MegaPixel Fixed Focal Length Lenses are ideal for machine vision applications with demanding space constraints. These lenses complement the resolution of many MegaPixel cameras with 1/2" or 2/3" formats. Low distortion and high resolution enable these economically priced lenses to produce sharp, high contrast images compared to standard CCTV and compact lenses. Locking screws for the manual iris and focus allow these lenses to be used in high vibration environments. Typical applications include factory automation, inspection, and macro work.

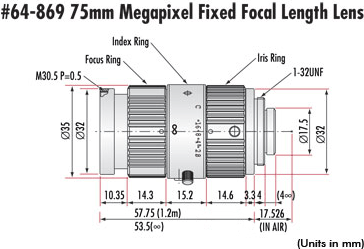

Note: For #64-869 75mm FL Lens, remove focus limit screw to focus past 1.2m.
