High Precision Motorized Stage Systems

Zaber™ High Precision Motorized Stage Systems

Zaber™ High Precision Motorized Stage Systems

Zaber™ High Precision Motorized Stage Systems #15-285, 25 mm Travel, Motorized Linear Stage, Integrated Controller #15-286, 50mm Travel, Motorized Linear Stage, Integrated Controller #15-287, 100mm Travel, Motorized Linear Stage, Integrated Controller +1
×
  • High Accuracy, 25mm, 50mm, 100mm, and 200mm Travel Options
  • Integrated Motor and Controller
  • Available with Integrated, 200 Counts per Revolution (CPR) Motor Mounted Encoder
  • Easily Configurable in X-Y or X-Y-Z Configurations

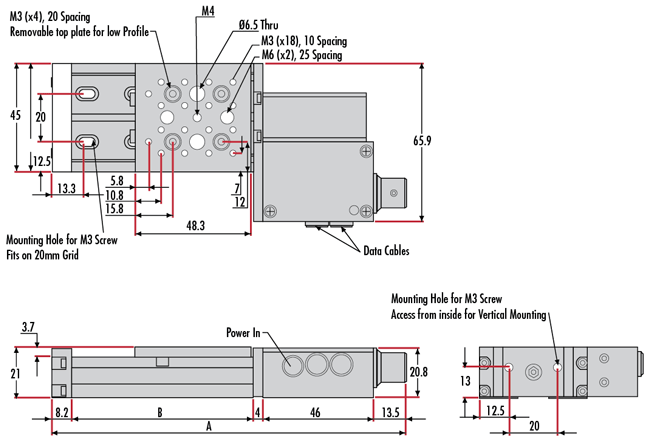

Zaber Technologies Inc. Canada High Precision Motorized Stage Systems are computer-controlled, self-contained linear stages that include a stepper motor and built-in controller. The High Precision Motorized Stage Systems can connect directly to a computer’s RS-232 port, while the included software provides an easy method for controlling travel distance or position. Additionally, the manual control potentiometer permits smooth manual movement. Encoder versions are available for all travel lengths, with 200 Counts per Revolution (CPR) rotary quadrature encoders integrated into the stepper motor. The integrated rotary encoder provides closed-loop control and slip/stall detection and recovery.

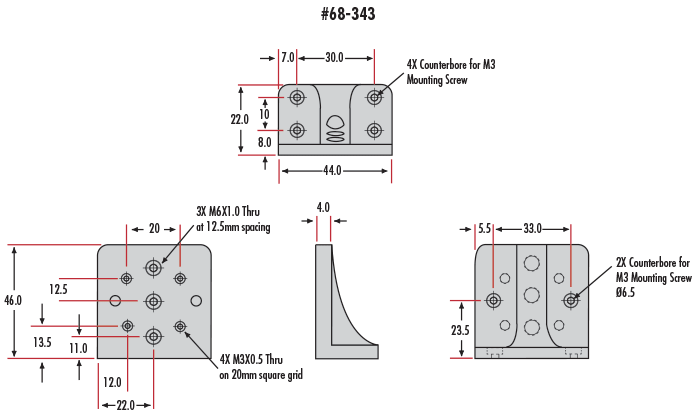

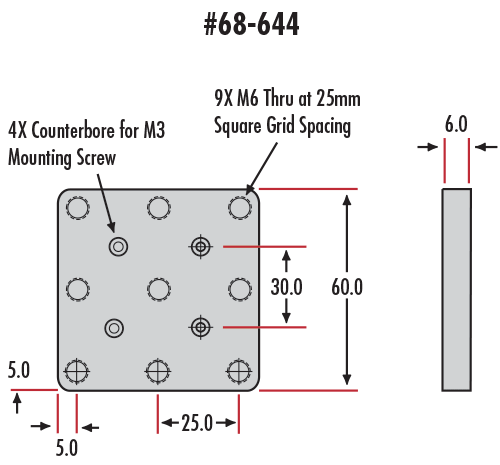

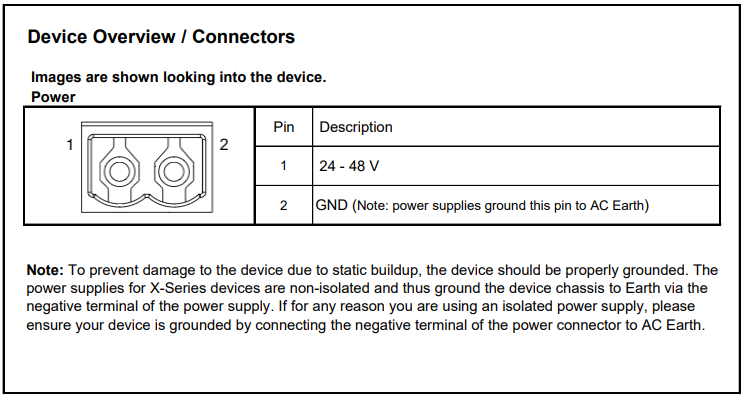

Note: A bottom adapter plate (sold separately) is required for mounting to a standard metric or English breadboard. A 24-48 VDC universal power supply, data cables for daisy chaining, and computer interface cables (USB or RS-232) are sold separately as accessories. Use Top Adapter Plate #68-644 to Mount 70mm TECHSPEC® Stages.
