LightPath 354125 | 11mm Dia., 0.50 NA, BBAR (350-700nm), Molded Aspheric Lens

Precision Molded Aspheric Lenses

Precision Molded Aspheric Lenses

Stock #33-425
€135.00
Qty 1-10
€135.00
Qty 11
€121.50
Volume Pricing
Request a Quote
Numerical Aperture NA:
0.50

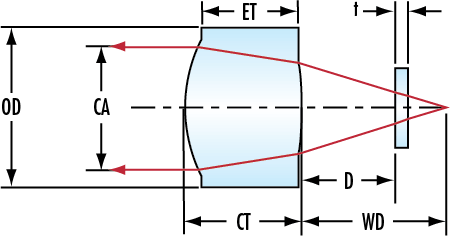

Diameter (mm):
11.00 ±0.015
Effective Focal Length EFL (mm):
10.00
Focal Length Specification Wavelength (nm):
633.00
Focal Length Tolerance (%):
±1
Clear Aperture CA (mm):
10.00
Coating:
BBAR (350-700nm)
Transmitted Wavefront Error (λ, RMS):
< 0.087
Surface Quality:
40-20
Operating Temperature (°C):
≤200
Center Thickness Tolerance (mm):
±0.40
Center Thickness CT (mm):
3.64
Working Distance (mm):
7.8
Edge Thickness ET (mm):
1.092
Magnification:
Infinite
Substrate:
Index of Refraction nd:
1.586
Abbe Number (vd):
60.88
Coating Specification:
Ravg ≤0.5% @ 350 - 700nm
Compatible Laser Window:
Thickness: 0.25 (t) (mm)
Material: B-K7
f/#:
1.00
Lightpath Lens Code:
354125
Type:
Aspheric Lens
Typical Applications:
Collimate or Focus Laser Light
Wavelength Range (nm):
350 - 700

Regulatory Compliance

RoHS 2015:
Reach 205:

Product Family Description

  • Eliminate Spherical Aberration
  • Multiple Coating Options Available
  • Range of Numerical Apertures

LightPath® Geltech™ Molded Aspheric Lenses are used to eliminate spherical aberration and improve focusing and collimating accuracy in a variety of laser applications. Low NA aspheric lenses are designed to maintain beam shape, while high NA lenses gather all available light to maintain beam power over long distances. LightPath® Geltech™ Molded Aspheric Lenses are ideal for applications including sighting systems, bar code scanners, laser diode-to-fiber coupling, optical data storage, or biomedical lasers.

Laser Optics
