12.0mm Dia. x 36.0mm FL, VIS-EXT Coated, Plano-Convex Lens

Diameter (mm):

12.00 +0.000/-0.025

Effective Focal Length EFL (mm):

36.00 @ 587.6nm

Back Focal Length BFL (mm):

34.02

Coating:

VIS-EXT (350-700nm)

Coating Specification:

R_avg <0.5% @ 350 - 700nm

N-BK7

Surface Quality:

40-20

Power (P-V) @ 632.8nm:

1.5λ

Irregularity (P-V) @ 632.8nm:

λ/4

Focal Length Tolerance (%):

±1

Centering (arcmin):

Center Thickness CT (mm):

3.00 ±0.05

Edge Thickness ET (mm):

2.01

Radius R₁ (mm):

18.60

Clear Aperture CA (mm):

f/#:

Numerical Aperture NA:

0.17

Type:

Plano-Convex Lens

Bevel:

Protective bevel as needed

Typical Energy Density Limit:

5 J/cm² @ 532nm, 10ns

Wavelength Range (nm):

350 - 700

5 J/cm² @ 532nm, 10ns

Regulatory Compliance

RoHS 2015:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

View

Product Family Description

New Lower Price!

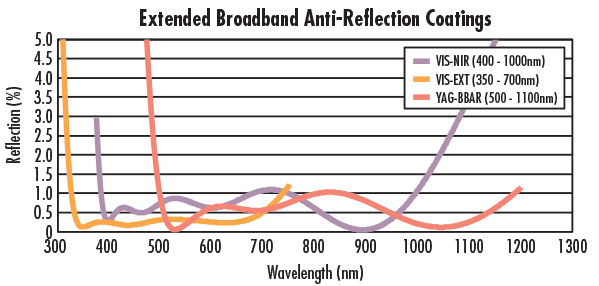

Visible Broadband Anti-Reflection Coating with Extended UV Performance
AR Coated to Provide <0.5% Reflectance per Surface for 350 - 700nm
Designed for 0° Angle of Incidence
Various Coating Options: Uncoated, MgF₂, VIS 0°, VIS-NIR, NIR I, NIR II, and YAG-BBAR

Plano-Convex (PCX) Lenses have a positive focal length, making them ideal for collecting and focusing light in imaging applications. They are also useful in a variety of applications involving emitters, detectors, lasers, and fiber optics. Coated versions have optimum light transmission. Available in a wide variety of diameters and focal lengths.
