Name: 12.5mm Dia. 1000-2000nm, NIR Linear Polarizer
SKU: 48-887
Price: €279,00

12.5mm Dia. 1000-2000nm, NIR Linear Polarizer

Stock #48-887

- +

€279,00

Qty 1-5
€279,00

Qty 6+
€239,00

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Coating:

Uncoated

Diameter (mm):

12.50

Extinction Ratio:

1000:1

Polymer Film on B270

Operating Temperature (°C):

-25 to +80

Thickness (mm):

2.00

Thickness Tolerance (mm):

±0.2

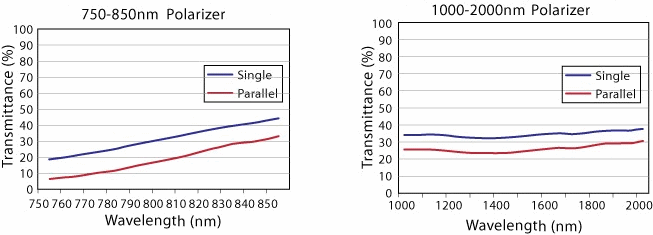

Transmission (%):

33.00

Transmission Tolerance (%):

±3

Type:

Linear Polarizer

Parallelism (arcmin):

Dimensional Tolerance (mm):

+0.0/-0.2

Construction:

Dichroic Polarizing Film on Glass

Wavelength Range (nm):

1000 - 2000

Regulatory Compliance

RoHS 2015:

Compliant

Reach 219:

Compliant

Certificate of Conformance:

View

Product Family Description

Ideal for Fiber Optic and Laser Applications
750 – 850nm and 1000 – 2000nm Wavelength Ranges
1000:1 Extinction Ratio

These high contrast NIR Glass Linear Polarizers consist of a polymer polarization film layered between two flat pieces of optical quality glass. These polarizers are ideal for a variety of applications involving low power NIR lasers, LEDs, and other NIR sources. Their extended broadband range is also ideal for a variety of telecommunication devices including fiber optic isolators and couplers.
