Name: 25mm Dia. x 30mm FL, NIR I Coated, Achromatic Lens
Brand: TECHSPEC
SKU: 22-487
Price: €127,00

25mm Dia. x 30mm FL, NIR I Coated, Achromatic Lens

Diameter (mm):

25.00 +0.0/-0.025

Effective Focal Length EFL (mm):

30.00

Focal Length Tolerance (%):

±1

Back Focal Length BFL (mm):

21.96

Focal Length Specification Wavelength (nm):

880.00

Clear Aperture CA (mm):

24.00

Centering (arcmin):

Center Thickness CT 1 (mm):

11.00

Center Thickness CT 2 (mm):

3.00

Center Thickness Tolerance (mm):

±0.2

Radius R₁ (mm):

19.83

Radius R₂ (mm):

-20.25

Radius R₃ (mm):

-99.32

Edge Thickness ET (mm):

8.77

N-LAK14 / N-SF66

Surface Quality:

40-20

f/#:

1.2

Numerical Aperture NA:

0.42

Coating:

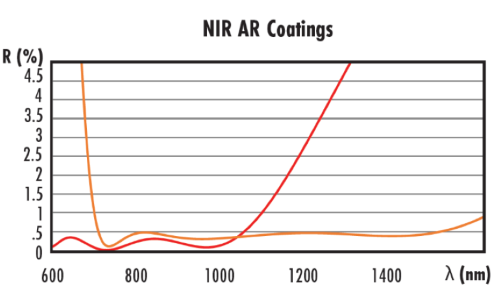

NIR I (600-1050nm)

Coating Specification:

R_avg ≤0.5% @ 600 - 1050nm

Power (P-V) @ 632.8nm:

1.5λ

Irregularity (P-V) @ 632.8nm:

λ/4

Bevel:

Protective bevel as needed

Type:

Achromatic Lens

Wavelength Range (nm):

600 - 1050

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

Designed to Give Increased Resolution and Smaller Spot Sizes for NIR Wavelengths (750-1100nm)
Decreased Spherical Aberration for Monochromatic Sources Out to 2μm

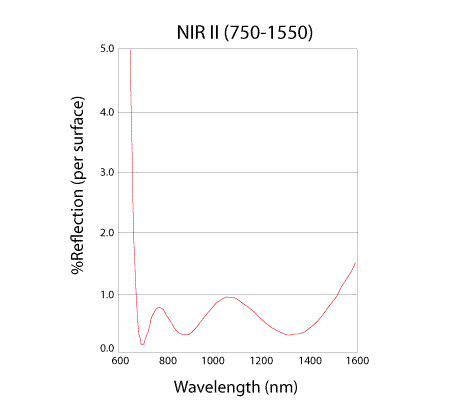

Broadband AR Coating has <1% Reflectivity Between 750–1550nm

TECHSPEC® Near-IR (NIR) Achromatic Lenses are designed to provide the smallest spot size possible for polychromatic light between 750 and 1100nm. By utilizing our NIR doublets instead of standard doublets designed for the visible, RMS spot diameter can be reduced from 43μm to 22.5μm, for example, when using polychromatic light. Spot size will be smaller when focusing monochromatic sources. Near-IR doublets also reduce spherical aberration and have superior performance when used with a monochromatic source up to 2μm in wavelength. Typical applications for these doublets include: imaging lenses for the near infrared, focusing and expanding of NIR lasers, and focusing/collimating lenses for fiber optics and NIR LEDs.
