25mm Dia x -75mm FL Uncoated, Illumination Grade PCV Cylinder Lens
  • Country/Region
  •

See all 105 Products in Family

TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
25mm Dia x -75mm FL Uncoated, Illumination Grade PCV Cylinder Lens

Stock #47-752
€58.00
×
Qty 1-5
€58.00
Qty 6
€46.40
Volume Pricing
Request a Quote
Diameter (mm):
25.00 +0.0/-0.2
Effective Focal Length EFL (mm):
-75.00
Back Focal Length BFL (mm):
-77.31
Center Thickness CT (mm):
3.50
Center Thickness Tolerance (mm):
±0.1
Substrate:
Coating:
Uncoated
Edge Thickness ET (mm):
5.57
f/#:
3.00
Focal Length Tolerance (%):
±3
Numerical Aperture NA:
0.17
Radius R1 (mm):
-38.76
Surface Quality:
60-40
Type:
Cylinder Lens, Plano-Concave
Wavelength Range (nm):
350 - 2200

Regulatory Compliance

RoHS 2015:
REACH 201:

Product Family Description

  • Cylinder Lenses Ideal for 1 Dimensional Laser Beam Convergence

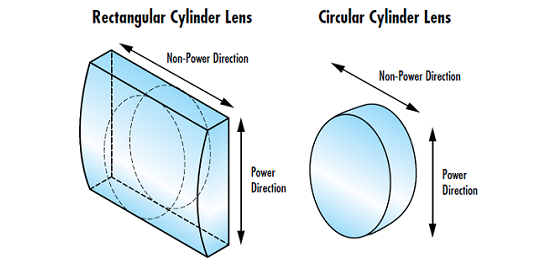

  • Circular and Rectangular Form Factors
  • Multiple Coating Options Available

TECHSPEC® Illumination Grade PCV Cylinder Lenses are commonly used to turn a collimated laser source into a line generator. These PCV Cylinder Lenses and TECHSPEC Illumination Grade PCX Cylinder Lenses can be used together for beam expander applications.

The thin lens approximation for the length of a line generated by a negative cylinder lens is: L = 2 * (r0/f) * (z + f) where L is the line length, r0 is half the beam diameter, z is the projection distance, and -f is the focal length of the lens.
