457nm 70 x 375mm META® holoOPTIX® FLEX Notch Filter

70 x 375mm META® holoOPTIX® FLEX Notch Filter

70 x 375mm META® holoOPTIX® FLEX Notch Filter

×
Stock #23-030 3-4 days
×
- +
€520,00
Qty 1-10
€520,00
Qty 11+
€468,00
Volume Pricing
Request Quote
Prices shown are exclusive of VAT/local taxes
Get Product Downloads
Dimensions (mm):
70 x 375
Optical Density OD (Average):
>4.0
Center Wavelength CWL (nm):
457.00
Thickness (mm):
0.31
Transmission (%):
77% (400-435nm)
87% (500-1500nm)
Type:
Notch Filter
Spectral Bandwidth @ OD1:
8 (Typical)

Regulatory Compliance

RoHS:
Certificate of Conformance:

Product Family Description

  • >OD 4.0 (Typical)
  • Broad Transmission Range
  • Unique Large Flexible Design
  • META® refers to the registered trademark of Meta Materials Inc.

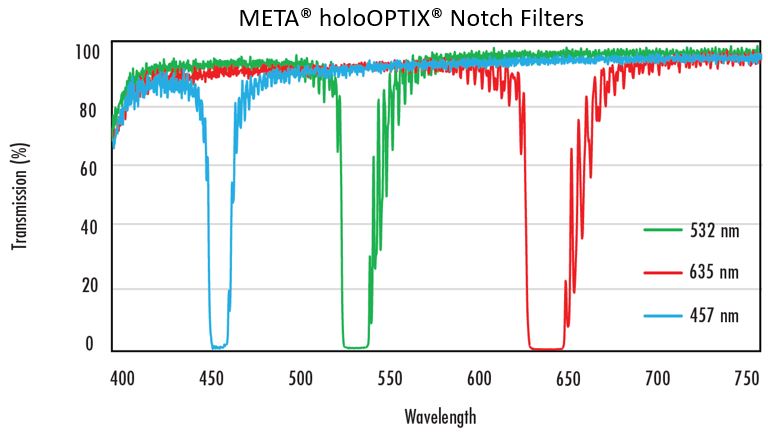

META® holoOPTIX® Notch Filters are ideal for laser analysis applications requiring specific wavelength rejection and high transmission of all other wavelengths. Available in either a standard 25.4mm rigid mounted configuration (STRATA) or in a unique 375mm x 70mm flexible configuration (FLEX), these filters can be used in fluorescence or Raman spectrometers to eliminate unwanted noise from the pump laser source to obtain the optimum signal-to-noise ratio. The flexible design can be easily be cut for system prototyping and integration. META® holoOPTIX® Notch Filters center wavelengths can be tuned by adjusting the angle of incidence while maintaining consistent notch center wavelengths for both p- and s- polarizations, even at high angles of incidence.
