Name: 500μm, Optical Grade Plastic Optical Fiber Unjacketed
SKU: 02-532
Price: €1,25

500μm, Optical Grade Plastic Optical Fiber Unjacketed

Stock #02-532

- +

€1,25

Qty 1+
€1,25

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Acceptance Angle (°):

61.00

Minimum Bend Radius (mm):

12.5

Acrylic

Attenuation (dB/m):

0.20

Numerical Aperture NA:

0.51

Number of Fibers:

1.00

Operating Temperature (°C):

-55 to +70

Outer Diameter (mm):

0.5

Core Diameter (μm):

486.00

Fiber Diameter (μm):

500.00

Length (ft):

Cut to Order, Minimum 10

Construction:

Unjacketed

Index of Refraction n_d - Core:

1.492

Index of Refraction n_d - Cladding:

1.402

Attenuation (dB/km):

150 - 300 (@ 650nm)

Numerical Aperture (NA) Tolerance:

±0.03

Diameter Tolerance (%):

±6

Regulatory Compliance

RoHS 2015:

Compliant

Reach 197:

Compliant

Certificate of Conformance:

View

Product Description

Minimum Purchase is 10ft or Qty = 10

Product Family Description

Superior Light Transmission
ESKA® Fiber Strands

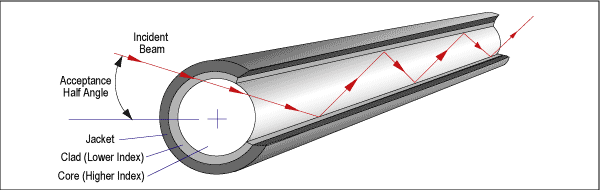

Step Index

Edmund Optics offers ESKA® acrylic fiber optics developed and manufactured by Mitsubishi. We offer these fibers in two grades, both with superior optical properties for improved transmission. The core of both is made of acrylic polymer PMMA (polymethyl-methacrylate) and is sheathed with a special thin layer of fluorine polymer which has a lower refractive index than the fiber core.

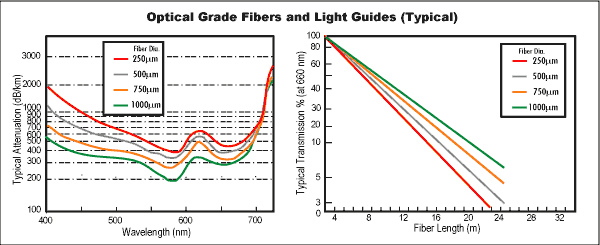

Optical Grade Fibers and Light Guides: These fibers were designed to provide higher transmission in the visible region of the spectrum. They can be used for a wide range of applications, from general industrial light guides to short distance data transmission. The fiber is tough and flexible, but is not designed to bear loads.

Note: Price listed is per foot - minimum order is 10 feet per stock number. 3mm Fiber is lower grade Eska® fiber for commercial applications only.
