Name: 50mm, Aluminum Coated, N-BK7 Right Angle Prism
Brand: TECHSPEC
SKU: 32-536
Price: €218,00

50mm, Aluminum Coated, N-BK7 Right Angle Prism

N-BK7 Right Angle Prisms

Stock #32-536

- +

€218,00

Qty 1-5
€218,00

Qty 6+
€185,30

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Coating:

Aluminum with protective overcoat

N-BK7

Surface Quality:

60-40

Type:

Right Angle Prism

Dimensional Tolerance (mm):

±0.1

Angle Tolerance (arcmin):

±2

Bevel:

Protective bevel as needed

Length of Hypotenuse (mm):

70.70

Length of Legs (mm):

50.00

Image Orientation:

Left-Handed

Coating Specification:

Reflective Surfaces: R_avg>85% FROM 400-700nm, @ 45° AOI

Ray Deviation (°):

Wavelength Range (nm):

400 - 700

Surface Flatness (P-V):

λ/4

Hypotenuse: 0.3 J/cm² @ 532nm & 1064nm, 10ns

Regulatory Compliance

RoHS 2015:

Compliant

Reach 219:

Compliant

Certificate of Conformance:

View

Product Family Description

Ray Deviation of 90°
Left Handed Image
Available with Aluminized and AR Coated Faces
Additional Right Angle Prism Options Available

Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. TECHSPEC® N-BK7 Right Angle Prisms are made from precision N-BK7 for use in a variety of visible light applications.

50mm, Aluminum Coated, N-BK7 Right Angle Prism

Regulatory Compliance

Product Family Description

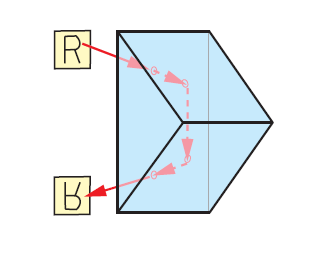

Right Angle Prism Ray Path

Right Angle Prism Ray Path

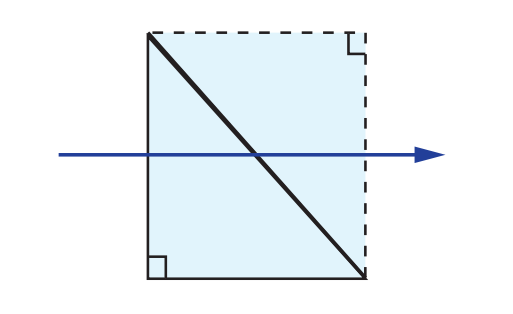

Right Angle Prism Tunnel Diagram
