Name: 676nm CWL, 11.8mm Dia. Bandpass Filter
SKU: 28-484
Price: €19,95

676nm CWL, 11.8mm Dia. Bandpass Filter

Stock #28-484 Clearance

- +

€19,95

Qty 1+
€19,95

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Diameter (mm):

11.80

Optical Density OD (Average):

≥3.0

Center Wavelength CWL (nm):

676.00

Center Wavelength CWL Tolerance (nm):

±2

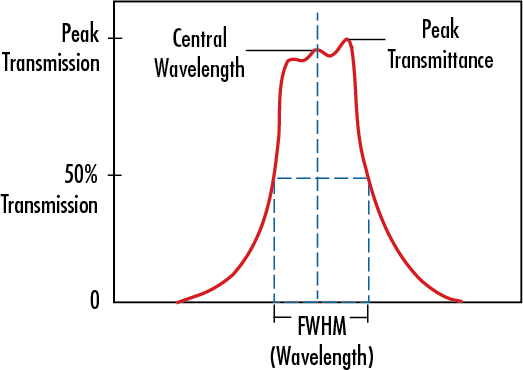

Full Width-Half Max FWHM (nm):

10.00

Minimum Transmission (%):

Surface Quality:

80-50

Thickness (mm):

4.60

Type:

Bandpass Filter

Typical Applications:

Kr Emission Line

Blocking Wavelength Range (nm):

200 - 1200

Dimensional Tolerance (mm):

±0.2

Regulatory Compliance

RoHS:

Exempt

Certificate of Conformance:

View

Product Family Description

Ideal for Selectively Transmitting a Narrow Range of Wavelengths
Quantities Extremely Limited, Buy While Supplies Last
For Even More Deals, Check out Mega Clearance: Optics

Bandpass interference filters are used extensively in a variety of biotech, biomedical, or quantitative chemical applications to selectively transmit a narrow range of wavelengths while blocking all others. Experimental Grade Bandpass Interference Filters are available in a variety of bandpass ranges in 11.8mm and 24.15mm diameter unmounted options.

Note: Specifications for experimental grade optics may vary as much as 10% from those listed. Also, no additional information is available other than what is provided.
