6mm Diameter, S-Mount Thin Optic Mount

Product Family Description

• Mounts for Simple Lenses, Achromats, Filters, or Reticles
• Designed to Integrate with Any C, S, or T-Mount Components

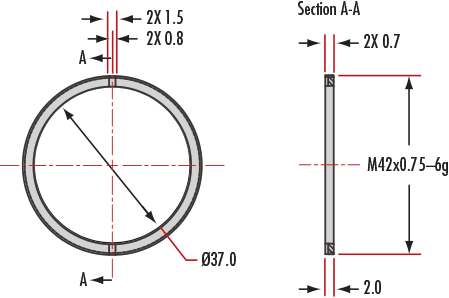

• Optic is Held in Place with Included Retaining Ring

TECHSPEC® C, S, and T-Mount Circular Optic Mounts are designed to mount a variety of circular optical components into C, S, or T-mount compatible systems. An included threaded retainer ring, designed to accept a standard straight flat blade spanner wrench, holds the optical component securely in place. TECHSPEC C, S, and T-Mount Circular Optic Mounts are threaded for 1” x 32TPI, M12 x 0.5, or M42 x 0.75 mounting, with 30mm, 16mm, and 48mm outer diameters, respectively. These circular optic mounts are compatible with a wide variety of Edmund Optics optomechanical components utilizing C, S, or T-Mount threads, and are ideal for creating a diverse range of optical systems.

Note: #56-353, #56-354, #52-933, and #52-292 are all 3-part assemblies
