9.5 x 11.2mm, 4-6λ Mirror

4-6λ First Surface Mirrors

×
Stock #31-418
€12,54
Qty 1-5
€12,54
Qty 6+
€9,65
Volume Pricing
Request Quote
Surface Flatness:
4 - 6λ
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Float Glass
Surface Quality:
80-50
Dimensions (mm):
9.5 x 11.2 ±0.76
Coating Specification:
Ravg >85% @ 400 - 700nm
Coating:
Protected Aluminum (400-700nm)
Coating Type:
Metal
Angle of Incidence (°):
45.00
Bevel:
Protective as needed
Clear Aperture (%):
>90
Thickness (mm):
1.20
Type:
Flat Mirror
Wavelength Range (nm):
400 - 700
Length (mm):
11.20
Width (mm):
9.50

Regulatory Compliance

RoHS 2015:
Reach 223:

Product Family Description

  • Wide Variety of Shapes and Sizes Available
  • >85% Reflection of Visible Light
  • Contact Us for Custom Sizes

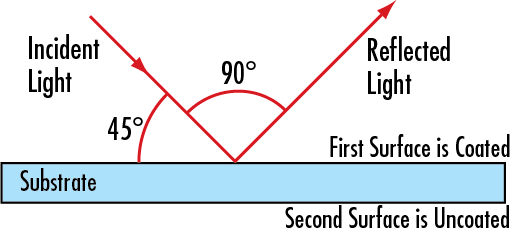

4 - 6λ First Surface Mirrors are an economical choice for a wide range of applications. The mirrors are available in circular, square, and rectangular dimensions. Rectangular first surface mirrors are ideal for applications requiring the mirror to be mounted at 45° in order to produce a 90° bend in the light path.
