Name: Universal Breadboard Adapter for ¾" Posts
SKU: 12-637
Price: €107,00

Universal Breadboard Adapter for ¾" Posts

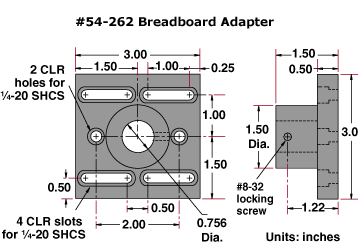

Breadboard Adapter for 3/4" Posts, #54-262

Stock #12-637

- +

€107,00

Qty 1-4
€107,00

Qty 5+
€94,70

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Length (mm):

76.20

Length (inches):

3.0

Width (mm):

76.20

Width (inches):

3.0

Type:

Imaging System Base

Compatible Post Diameter (mm):

19.05 (3/4")

Construction:

Anodized Aluminum

Height (inches):

1.5

Mounting Threads:

0.75" Dia. Hole with Locking Screw

Weight (lbs):

0.5

Height (mm):

38.10

Regulatory Compliance

RoHS 2015:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

View

Product Family Description

Variety of Bases Available
Stand-Alone or Benchtop Compatible Bases
Designed for Use with 0.75" Stainless Steel Posts
Rack and Pinion Focusing Mounts, and Accessories also Available

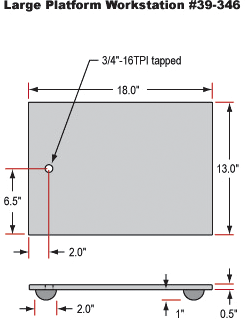

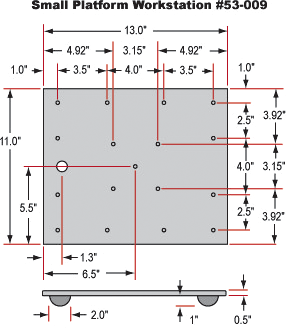

Imaging System Bases are designed to construct imaging systems utilizing our 0.75" (19.05mm) diameter, 16 TPI mounting posts. The Large Workstation Platform and Small Platform Base feature sorbothane feet to minimize vibration. The Circular Base is weighted for added stability. The Universal Breadboard Adapter for ¾” Posts features slots that allow for mounting to both metric and English optical tables and breadboards. Imaging System Bases are available for a variety of system mounting and construction needs.
