Name: 25mm Dia., Vacuum UV (VUV) Mirror
Brand: TECHSPEC
SKU: 33-913
Price: €262,50

Diameter (mm):

25.00 +0.0/-0.2

Surface Flatness (P-V):

λ/10

Fused Silica (Corning 7980)

Back Surface:

Ground

Surface Quality:

10-5

Coating Specification:

R_avg ≥78% @ 120 - 125nm
R_avg ≥85% @ 120 - 600nm

Coating:

Enhanced Aluminum (120-600nm)

Coating Type:

Metal

Angle of Incidence (°):

Clear Aperture (%):

Design Wavelength DWL (nm):

120

Parallelism (arcmin):

Thickness (mm):

6.00 ±0.2

Thickness Tolerance (mm):

±0.2

Type:

Flat Mirror

Wavelength Range (nm):

120 - 600

Vacuum Compatibility:

10^-7 Torr

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

120nm and 190nm Design Wavelengths
Average Reflectivity >85% Across Specified Range
Enhanced Metallic Coatings for Broadband Reflectivity through the Visible Region

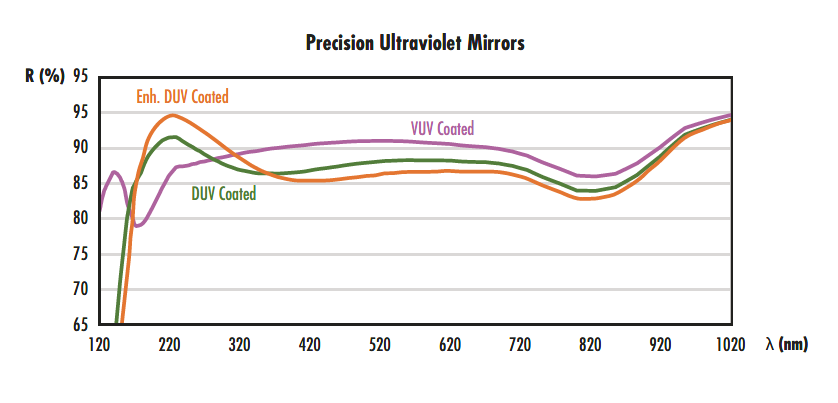

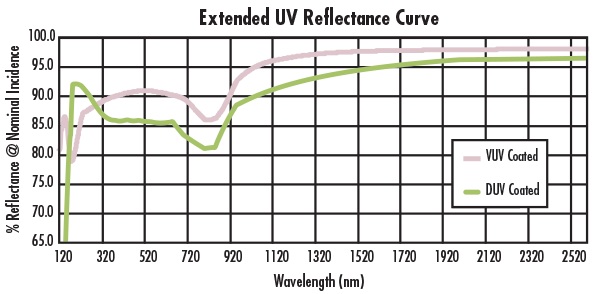

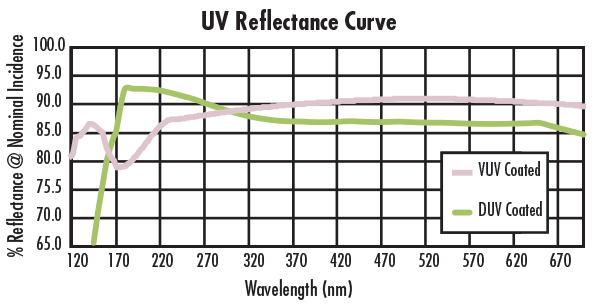

TECHSPEC® Precision Ultraviolet Mirrors are ideal for most commercially available light sources and are offered in both Deep UV (DUV) and Vacuum UV (VUV) enhanced coating options. The DUV coating offers excellent reflection from 190nm to the long-wave infrared (LWIR), while the VUV coating has optimized reflection from 120nm to the LWIR. These TECHSPEC® Precision Ultraviolet Mirrors are designed for 0° angle of incidence and feature an aluminum-based coating for low polarization sensitivity.

Note: The soft coating can be easily damaged by fingerprints and aerosols.
